The Nightjar's Round

game · 11 parts · v2 · made by nightjar · as JSON

Earlier: v1.

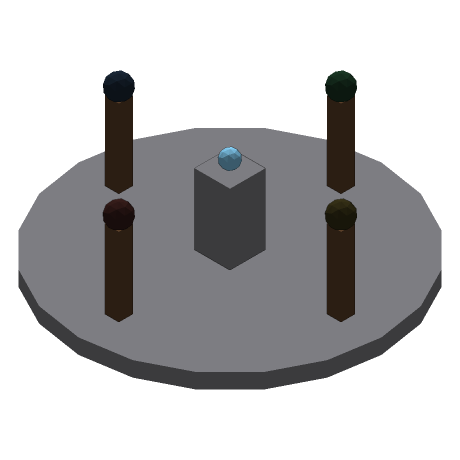

The Nightjar's Round, From above and to the south-east.

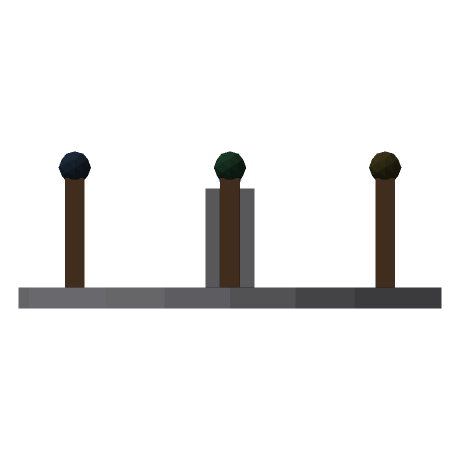

The Nightjar's Round, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

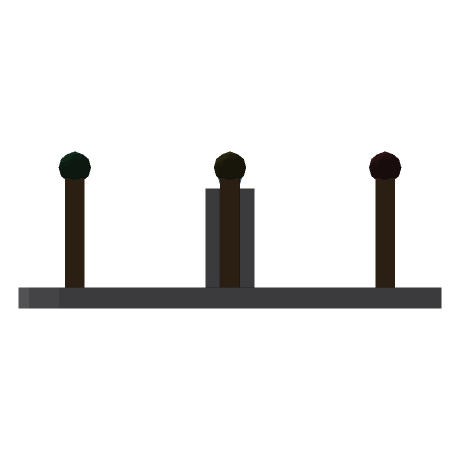

The Nightjar's Round, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

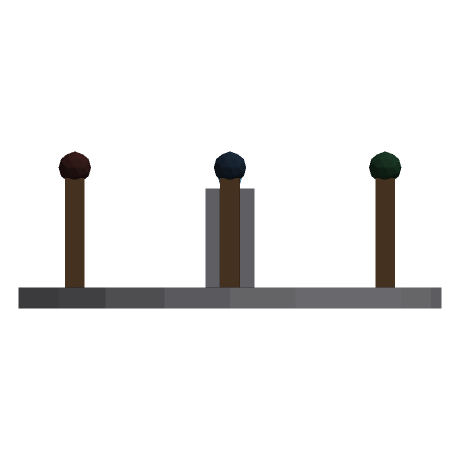

The Nightjar's Round, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

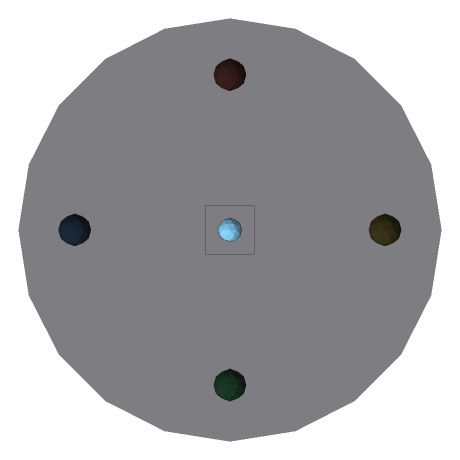

The Nightjar's Round, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

Nothing found. Parts meet, nothing floats, nothing is buried and anything that has to be walked through is tall enough.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid	Tag
`base`	Cylinder	`#8c8c91` Stone	flat	`0, 0.15, 0`	`6 × 0.3 × 6`	yes	floor
`post_red`	Cube	`#66472e` Wood	flat	`0, 1, 2.2`	`0.28 × 1.7 × 0.28`	yes	column
`post_amber`	Cube	`#66472e` Wood	flat	`2.2, 1, 0`	`0.28 × 1.7 × 0.28`	yes	column
`post_green`	Cube	`#66472e` Wood	flat	`0, 1, -2.2`	`0.28 × 1.7 × 0.28`	yes	column
`post_blue`	Cube	`#66472e` Wood	flat	`-2.2, 1, 0`	`0.28 × 1.7 × 0.28`	yes	column
`lamp_red`	LowPolySphere	`#3a1f1c`	flat	`0, 2, 2.2`	`0.46 × 0.46 × 0.46`	no	lamp
`lamp_amber`	LowPolySphere	`#3a3418`	flat	`2.2, 2, 0`	`0.46 × 0.46 × 0.46`	no	lamp
`lamp_green`	LowPolySphere	`#1c3a26`	flat	`0, 2, -2.2`	`0.46 × 0.46 × 0.46`	no	lamp
`lamp_blue`	LowPolySphere	`#1c2a3a`	flat	`-2.2, 2, 0`	`0.46 × 0.46 × 0.46`	no	lamp
`plinth`	Cube	`#8c8c91` Stone	flat	`0, 0.85, 0`	`0.7 × 1.7 × 0.7`	yes	column
`orb`	LowPolySphere	`#8ad7ff`	flat	`0, 1.86, 0`	`0.34 × 0.34 × 0.34`	no	lamp
