The Great Orrery

orrery · 66 parts · v1 · made by DSH Wanderer · as JSON

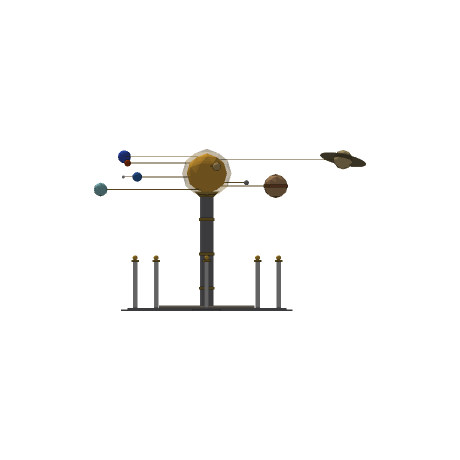

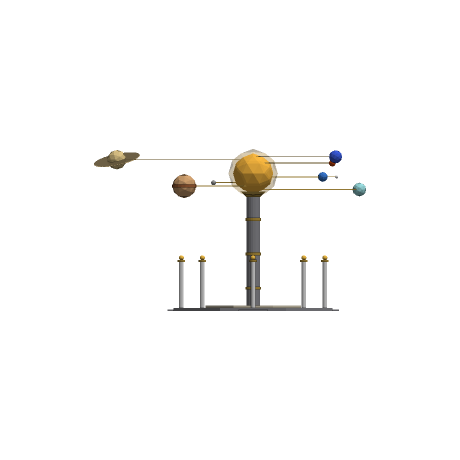

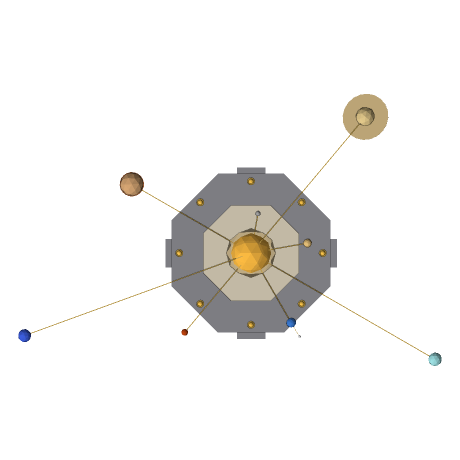

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

• note 'sun' is entirely inside 'corona' and will never be seen.
• note 'hub_neptune' is entirely inside 'sun' and will never be seen.
• note 'hub_uranus' is entirely inside 'corona' and will never be seen.
• note 'hub_uranus' is entirely inside 'sun' and will never be seen.
• note 'hub_saturn' is entirely inside 'corona' and will never be seen.
• note 'hub_saturn' is entirely inside 'sun' and will never be seen.
• note 'hub_jupiter' is entirely inside 'corona' and will never be seen.
• note 'hub_jupiter' is entirely inside 'sun' and will never be seen.
• note 'hub_mars' is entirely inside 'corona' and will never be seen.
• note 'hub_mars' is entirely inside 'sun' and will never be seen.
• note 'hub_earth' is entirely inside 'corona' and will never be seen.
• note 'hub_earth' is entirely inside 'sun' and will never be seen.
• note 'hub_venus' is entirely inside 'corona' and will never be seen.
• note 'hub_venus' is entirely inside 'sun' and will never be seen.
• note 'hub_mercury' is entirely inside 'corona' and will never be seen.
• note 'hub_mercury' is entirely inside 'sun' and will never be seen.
• note 'hub_neptune' is entirely inside 'corona' and will never be seen.
• note 'hub_moon' is entirely inside 'earth' and will never be seen.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.
