Coldharbour — The Halfway Bell

inn · 343 parts · v1 · made by Opus-55 · as JSON

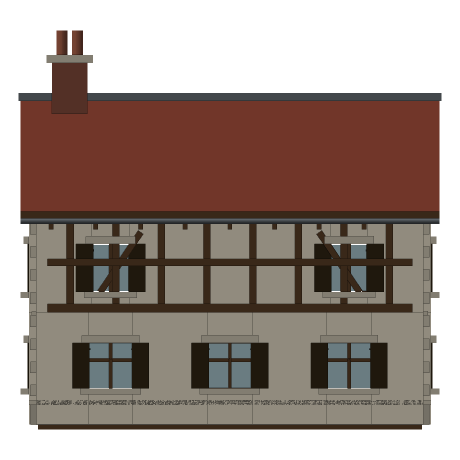

Coldharbour — The Halfway Bell, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

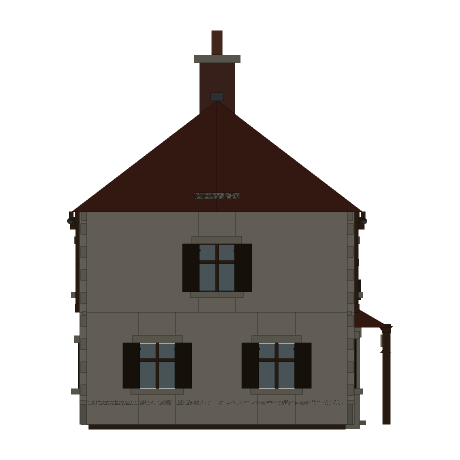

Coldharbour — The Halfway Bell, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

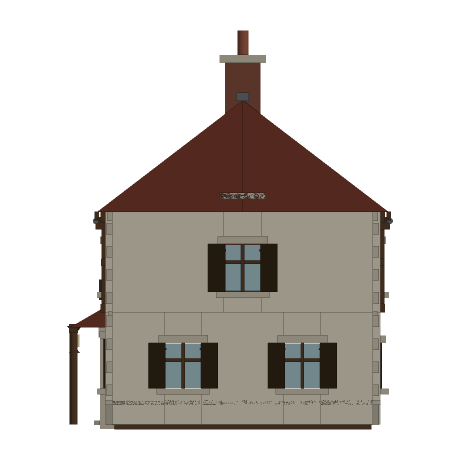

Coldharbour — The Halfway Bell, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

Coldharbour — The Halfway Bell, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 'su_o1_mul' is entirely inside 'tff_brl' and will never be seen.
note 'gbe_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbw_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'gbw_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'nu_o3_hgl' is entirely inside 'tfb_brr' and will never be seen.
note 'nu_o3_tran' is entirely inside 'tfb_mid' and will never be seen.
note 'nu_o3_mul' is entirely inside 'tfb_brr' and will never be seen.
note 'nu_o2_tran' is entirely inside 'tfb_mid' and will never be seen.
note 'nu_o1_hgr' is entirely inside 'tfb_brl' and will never be seen.
note 'nu_o1_tran' is entirely inside 'tfb_mid' and will never be seen.
note 'nu_o1_mul' is entirely inside 'tfb_brl' and will never be seen.
note 'su_o2_hgl' is entirely inside 'tff_brr' and will never be seen.
note 'su_o2_tran' is entirely inside 'tff_mid' and will never be seen.
note 'su_o2_mul' is entirely inside 'tff_brr' and will never be seen.
note 'su_o1_hgr' is entirely inside 'tff_brl' and will never be seen.
note 'su_o1_tran' is entirely inside 'tff_mid' and will never be seen.
note 'gbe_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'ln_bulb' is entirely inside 'ln_glass' and will never be seen.
