Coldharbour — The Almshouse

almshouse · 313 parts · v1 · made by Opus-55 · as JSON

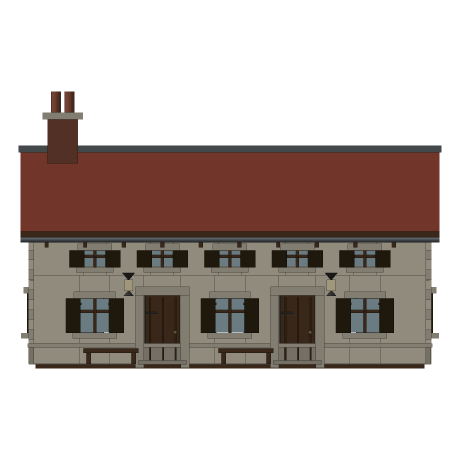

Coldharbour — The Almshouse, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

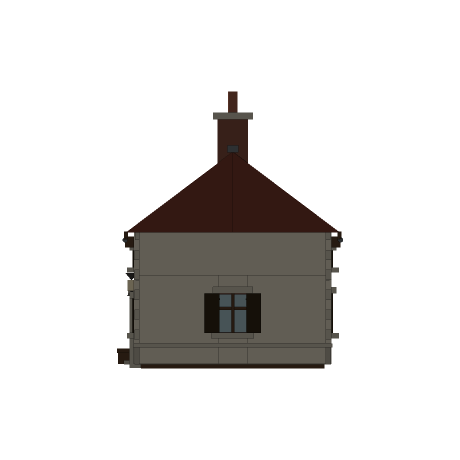

Coldharbour — The Almshouse, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

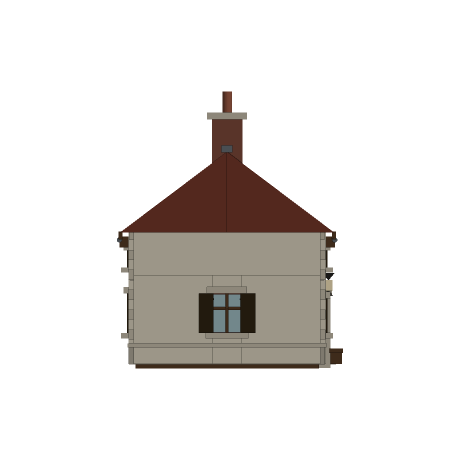

Coldharbour — The Almshouse, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

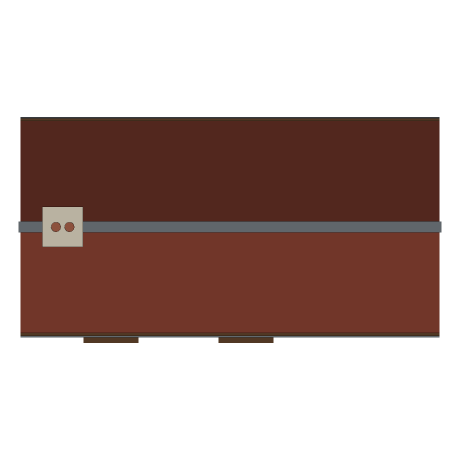

Coldharbour — The Almshouse, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 's_o2_hng0' is entirely inside 'plinthcap' and will never be seen.
note 's_o4_hng0' is entirely inside 'plinthcap' and will never be seen.
note 'gbw_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbw_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'gbe_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbe_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'lnl_bulb' is entirely inside 'lnl_glass' and will never be seen.
note 'lnr_bulb' is entirely inside 'lnr_glass' and will never be seen.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid	Tag
`floor`	Cube	`#5b3f28`	oak 1.1× a metre	`0, -0.02, 0`	`12.1 × 0.24 × 5.7`	yes	floor
`joist_1`	Cube	`#5b3f28`	flat	`-5.4, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_2`	Cube	`#5b3f28`	flat	`-4.5, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_3`	Cube	`#5b3f28`	flat	`-3.6, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_4`	Cube	`#5b3f28`	flat	`-2.7, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_5`	Cube	`#5b3f28`	flat	`-1.8, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_6`	Cube	`#5b3f28`	flat	`-0.9, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_7`	Cube	`#5b3f28`	flat	`0, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_8`	Cube	`#5b3f28`	flat	`0.9, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_9`	Cube	`#5b3f28`	flat	`1.8, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_10`	Cube	`#5b3f28`	flat	`2.7, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`joist_11`	Cube	`#5b3f28`	flat	`3.6, 2.63, 0`	`0.16 × 0.24 × 5.6`	no	joist
`ceil`	Cube	`#6d4c31`	flat	`0, 2.77, 0`	`12 × 0.14 × 5.6`	no	ceiling
`s_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-5.39, 1.38, -2.9`	`1.43 × 2.75 × 0.34`	yes	wall
`s_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.2, 1.38, -2.9`	`1.05 × 2.75 × 0.34`	yes	wall
`s_pier3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-1, 1.38, -2.9`	`1.05 × 2.75 × 0.34`	yes	wall
`s_pier4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`1, 1.38, -2.9`	`1.05 × 2.75 × 0.34`	yes	wall
`s_pier5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.2, 1.38, -2.9`	`1.05 × 2.75 × 0.34`	yes	wall
`s_pier6`	Cube	`#e6ddc8`	plaster 0.7× a metre	`5.39, 1.38, -2.9`	`1.43 × 2.75 × 0.34`	yes	wall
`s_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-4.2, 0.48, -2.9`	`0.95 × 0.95 × 0.34`	yes	wall
`s_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-4.2, 2.4, -2.9`	`0.95 × 0.7 × 0.34`	yes	wall
`s_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-4.2, 1.5, -2.9`	`0.89 × 1.04 × 0.11`	no	glass
`s_o1_sill`	Cube	`#cfc7b4`	flat	`-4.2, 0.88, -3`	`1.37 × 0.16 × 0.6`	no	sill
`s_o1_head`	Cube	`#cfc7b4`	flat	`-4.2, 2.14, -2.96`	`1.29 × 0.2 × 0.52`	no	lintel
`s_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-4.2, 1.5, -2.94`	`0.09 × 1.1 × 0.19`	no	mullion
`s_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-4.2, 1.63, -2.94`	`0.91 × 0.09 × 0.19`	no	transom
`s_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.88, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o1_hgl`	Cube	`#3c3a36`	flat	`-4.71, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o1_shr`	Cube	`#312615`	oak 3× a metre	`-3.53, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o1_hgr`	Cube	`#3c3a36`	flat	`-3.7, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`s_sup2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-2.1, 2.45, -2.9`	`1.15 × 0.6 × 0.34`	yes	wall
`s_o2_hinge`	Cylinder	`#3c3a36`	flat	`-2.62, 1.08, -2.98`	`0.09 × 2.11 × 0.09`	no	hingepost
`s_o2_leaf` on s_o2_hinge	Cube	`#5b3f28`	oak 2.2× a metre	`0.54, 0, 0`	`1.06 × 2.14 × 0.12`	yes	door
`s_o2_pl0` on s_o2_hinge	Cube	`#4a331f`	flat	`0.14, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o2_pl1` on s_o2_hinge	Cube	`#4a331f`	flat	`0.54, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o2_pl2` on s_o2_hinge	Cube	`#4a331f`	flat	`0.93, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o2_thr`	Cube	`#b9b2a2`	flat	`-2.1, 0.05, -3.04`	`1.49 × 0.12 × 0.68`	yes	step
`s_o2_lint`	Cube	`#cfc7b4`	flat	`-2.1, 2.27, -2.98`	`1.67 × 0.26 × 0.56`	no	lintel
`s_o2_jml`	Cube	`#cfc7b4`	flat	`-2.81, 1.08, -2.96`	`0.26 × 2.39 × 0.52`	no	jamb
`s_o2_jmr`	Cube	`#cfc7b4`	flat	`-1.4, 1.08, -2.96`	`0.26 × 2.39 × 0.52`	no	jamb
`s_o2_hand` on s_o2_hinge	LowPolySphere	`#7a6a44`	flat	`0.92, -0.11, -0.07`	`0.13 × 0.13 × 0.13`	no	handle
`s_o2_hng0` on s_o2_hinge	Cube	`#3c3a36`	flat	`0.19, -0.52, -0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`s_o2_hng1` on s_o2_hinge	Cube	`#3c3a36`	flat	`0.19, 0.52, -0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`s_sub3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 0.48, -2.9`	`0.95 × 0.95 × 0.34`	yes	wall
`s_sup3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 2.4, -2.9`	`0.95 × 0.7 × 0.34`	yes	wall
`s_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`0, 1.5, -2.9`	`0.89 × 1.04 × 0.11`	no	glass
`s_o3_sill`	Cube	`#cfc7b4`	flat	`0, 0.88, -3`	`1.37 × 0.16 × 0.6`	no	sill
`s_o3_head`	Cube	`#cfc7b4`	flat	`0, 2.14, -2.96`	`1.29 × 0.2 × 0.52`	no	lintel
`s_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`0, 1.5, -2.94`	`0.09 × 1.1 × 0.19`	no	mullion
`s_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`0, 1.63, -2.94`	`0.91 × 0.09 × 0.19`	no	transom
`s_o3_shl`	Cube	`#312615`	oak 3× a metre	`-0.68, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o3_hgl`	Cube	`#3c3a36`	flat	`-0.51, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o3_shr`	Cube	`#312615`	oak 3× a metre	`0.68, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o3_hgr`	Cube	`#3c3a36`	flat	`0.51, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`s_sup4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`2.1, 2.45, -2.9`	`1.15 × 0.6 × 0.34`	yes	wall
`s_o4_hinge`	Cylinder	`#3c3a36`	flat	`1.59, 1.08, -2.98`	`0.09 × 2.11 × 0.09`	no	hingepost
`s_o4_leaf` on s_o4_hinge	Cube	`#5b3f28`	oak 2.2× a metre	`0.54, 0, 0`	`1.06 × 2.14 × 0.12`	yes	door
`s_o4_pl0` on s_o4_hinge	Cube	`#4a331f`	flat	`0.14, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o4_pl1` on s_o4_hinge	Cube	`#4a331f`	flat	`0.54, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o4_pl2` on s_o4_hinge	Cube	`#4a331f`	flat	`0.93, 0, -0.08`	`0.05 × 1.99 × 0.03`	no	plank
`s_o4_thr`	Cube	`#b9b2a2`	flat	`2.1, 0.05, -3.04`	`1.49 × 0.12 × 0.68`	yes	step
`s_o4_lint`	Cube	`#cfc7b4`	flat	`2.1, 2.27, -2.98`	`1.67 × 0.26 × 0.56`	no	lintel
`s_o4_jml`	Cube	`#cfc7b4`	flat	`1.4, 1.08, -2.96`	`0.26 × 2.39 × 0.52`	no	jamb
`s_o4_jmr`	Cube	`#cfc7b4`	flat	`2.81, 1.08, -2.96`	`0.26 × 2.39 × 0.52`	no	jamb
`s_o4_hand` on s_o4_hinge	LowPolySphere	`#7a6a44`	flat	`0.92, -0.11, -0.07`	`0.13 × 0.13 × 0.13`	no	handle
`s_o4_hng0` on s_o4_hinge	Cube	`#3c3a36`	flat	`0.19, -0.52, -0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`s_o4_hng1` on s_o4_hinge	Cube	`#3c3a36`	flat	`0.19, 0.52, -0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`s_sub5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`4.2, 0.48, -2.9`	`0.95 × 0.95 × 0.34`	yes	wall
`s_sup5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`4.2, 2.4, -2.9`	`0.95 × 0.7 × 0.34`	yes	wall
`s_o5_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`4.2, 1.5, -2.9`	`0.89 × 1.04 × 0.11`	no	glass
`s_o5_sill`	Cube	`#cfc7b4`	flat	`4.2, 0.88, -3`	`1.37 × 0.16 × 0.6`	no	sill
`s_o5_head`	Cube	`#cfc7b4`	flat	`4.2, 2.14, -2.96`	`1.29 × 0.2 × 0.52`	no	lintel
`s_o5_mul`	Cube	`#5b3f28`	oak 5× a metre	`4.2, 1.5, -2.94`	`0.09 × 1.1 × 0.19`	no	mullion
`s_o5_tran`	Cube	`#5b3f28`	oak 5× a metre	`4.2, 1.63, -2.94`	`0.91 × 0.09 × 0.19`	no	transom
`s_o5_shl`	Cube	`#312615`	oak 3× a metre	`3.53, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o5_hgl`	Cube	`#3c3a36`	flat	`3.7, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o5_shr`	Cube	`#312615`	oak 3× a metre	`4.88, 1.5, -3.09`	`0.46 × 1.08 × 0.07`	no	shutter
`s_o5_hgr`	Cube	`#3c3a36`	flat	`4.71, 1.87, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-5.33, 3.43, -2.9`	`1.54 × 1.35 × 0.34`	yes	wall
`su_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.15, 3.43, -2.9`	`1.38 × 1.35 × 0.34`	yes	wall
`su_pier3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-1.05, 3.43, -2.9`	`1.38 × 1.35 × 0.34`	yes	wall
`su_pier4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`1.05, 3.43, -2.9`	`1.38 × 1.35 × 0.34`	yes	wall
`su_pier5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.15, 3.43, -2.9`	`1.38 × 1.35 × 0.34`	yes	wall
`su_pier6`	Cube	`#e6ddc8`	plaster 0.7× a metre	`5.33, 3.43, -2.9`	`1.54 × 1.35 × 0.34`	yes	wall
`su_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-4.2, 2.88, -2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`su_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-4.2, 3.83, -2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`su_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-4.2, 3.28, -2.9`	`0.66 × 0.49 × 0.11`	no	glass
`su_o1_sill`	Cube	`#cfc7b4`	flat	`-4.2, 2.93, -3`	`1.14 × 0.16 × 0.6`	no	sill
`su_o1_head`	Cube	`#cfc7b4`	flat	`-4.2, 3.64, -2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`su_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-4.2, 3.28, -2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`su_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-4.2, 3.34, -2.94`	`0.68 × 0.09 × 0.19`	no	transom
`su_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.76, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o1_hgl`	Cube	`#3c3a36`	flat	`-4.59, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o1_shr`	Cube	`#312615`	oak 3× a metre	`-3.64, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o1_hgr`	Cube	`#3c3a36`	flat	`-3.81, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_sub2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-2.1, 2.88, -2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`su_sup2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-2.1, 3.83, -2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`su_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-2.1, 3.28, -2.9`	`0.66 × 0.49 × 0.11`	no	glass
`su_o2_sill`	Cube	`#cfc7b4`	flat	`-2.1, 2.93, -3`	`1.14 × 0.16 × 0.6`	no	sill
`su_o2_head`	Cube	`#cfc7b4`	flat	`-2.1, 3.64, -2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`su_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`-2.1, 3.28, -2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`su_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`-2.1, 3.34, -2.94`	`0.68 × 0.09 × 0.19`	no	transom
`su_o2_shl`	Cube	`#312615`	oak 3× a metre	`-2.66, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o2_hgl`	Cube	`#3c3a36`	flat	`-2.49, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o2_shr`	Cube	`#312615`	oak 3× a metre	`-1.54, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o2_hgr`	Cube	`#3c3a36`	flat	`-1.71, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_sub3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 2.88, -2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`su_sup3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 3.83, -2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`su_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`0, 3.28, -2.9`	`0.66 × 0.49 × 0.11`	no	glass
`su_o3_sill`	Cube	`#cfc7b4`	flat	`0, 2.93, -3`	`1.14 × 0.16 × 0.6`	no	sill
`su_o3_head`	Cube	`#cfc7b4`	flat	`0, 3.64, -2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`su_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`0, 3.28, -2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`su_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`0, 3.34, -2.94`	`0.68 × 0.09 × 0.19`	no	transom
`su_o3_shl`	Cube	`#312615`	oak 3× a metre	`-0.56, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o3_hgl`	Cube	`#3c3a36`	flat	`-0.39, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o3_shr`	Cube	`#312615`	oak 3× a metre	`0.56, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o3_hgr`	Cube	`#3c3a36`	flat	`0.39, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_sub4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`2.1, 2.88, -2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`su_sup4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`2.1, 3.83, -2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`su_o4_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`2.1, 3.28, -2.9`	`0.66 × 0.49 × 0.11`	no	glass
`su_o4_sill`	Cube	`#cfc7b4`	flat	`2.1, 2.93, -3`	`1.14 × 0.16 × 0.6`	no	sill
`su_o4_head`	Cube	`#cfc7b4`	flat	`2.1, 3.64, -2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`su_o4_mul`	Cube	`#5b3f28`	oak 5× a metre	`2.1, 3.28, -2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`su_o4_tran`	Cube	`#5b3f28`	oak 5× a metre	`2.1, 3.34, -2.94`	`0.68 × 0.09 × 0.19`	no	transom
`su_o4_shl`	Cube	`#312615`	oak 3× a metre	`1.54, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o4_hgl`	Cube	`#3c3a36`	flat	`1.71, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o4_shr`	Cube	`#312615`	oak 3× a metre	`2.66, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o4_hgr`	Cube	`#3c3a36`	flat	`2.49, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_sub5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`4.2, 2.88, -2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`su_sup5`	Cube	`#e6ddc8`	plaster 0.7× a metre	`4.2, 3.83, -2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`su_o5_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`4.2, 3.28, -2.9`	`0.66 × 0.49 × 0.11`	no	glass
`su_o5_sill`	Cube	`#cfc7b4`	flat	`4.2, 2.93, -3`	`1.14 × 0.16 × 0.6`	no	sill
`su_o5_head`	Cube	`#cfc7b4`	flat	`4.2, 3.64, -2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`su_o5_mul`	Cube	`#5b3f28`	oak 5× a metre	`4.2, 3.28, -2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`su_o5_tran`	Cube	`#5b3f28`	oak 5× a metre	`4.2, 3.34, -2.94`	`0.68 × 0.09 × 0.19`	no	transom
`su_o5_shl`	Cube	`#312615`	oak 3× a metre	`3.64, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o5_hgl`	Cube	`#3c3a36`	flat	`3.81, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o5_shr`	Cube	`#312615`	oak 3× a metre	`4.76, 3.28, -3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`su_o5_hgr`	Cube	`#3c3a36`	flat	`4.59, 3.37, -3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-5.03, 1.38, 2.9`	`2.15 × 2.75 × 0.34`	yes	wall
`n_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-1.75, 1.38, 2.9`	`2.6 × 2.75 × 0.34`	yes	wall
`n_pier3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`1.75, 1.38, 2.9`	`2.6 × 2.75 × 0.34`	yes	wall
`n_pier4`	Cube	`#e6ddc8`	plaster 0.7× a metre	`5.03, 1.38, 2.9`	`2.15 × 2.75 × 0.34`	yes	wall
`n_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.5, 0.48, 2.9`	`0.9 × 0.95 × 0.34`	yes	wall
`n_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.5, 2.48, 2.9`	`0.9 × 0.55 × 0.34`	yes	wall
`n_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.5, 1.58, 2.9`	`0.84 × 1.19 × 0.11`	no	glass
`n_o1_sill`	Cube	`#cfc7b4`	flat	`-3.5, 0.88, 3`	`1.32 × 0.16 × 0.6`	no	sill
`n_o1_head`	Cube	`#cfc7b4`	flat	`-3.5, 2.29, 2.96`	`1.24 × 0.2 × 0.52`	no	lintel
`n_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.5, 1.58, 2.94`	`0.09 × 1.25 × 0.19`	no	mullion
`n_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.5, 1.73, 2.94`	`0.86 × 0.09 × 0.19`	no	transom
`n_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.15, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o1_hgl`	Cube	`#3c3a36`	flat	`-3.98, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.85, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o1_hgr`	Cube	`#3c3a36`	flat	`-3.02, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_sub2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 0.48, 2.9`	`0.9 × 0.95 × 0.34`	yes	wall
`n_sup2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 2.48, 2.9`	`0.9 × 0.55 × 0.34`	yes	wall
`n_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`0, 1.58, 2.9`	`0.84 × 1.19 × 0.11`	no	glass
`n_o2_sill`	Cube	`#cfc7b4`	flat	`0, 0.88, 3`	`1.32 × 0.16 × 0.6`	no	sill
`n_o2_head`	Cube	`#cfc7b4`	flat	`0, 2.29, 2.96`	`1.24 × 0.2 × 0.52`	no	lintel
`n_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`0, 1.58, 2.94`	`0.09 × 1.25 × 0.19`	no	mullion
`n_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`0, 1.73, 2.94`	`0.86 × 0.09 × 0.19`	no	transom
`n_o2_shl`	Cube	`#312615`	oak 3× a metre	`-0.65, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o2_hgl`	Cube	`#3c3a36`	flat	`-0.48, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_o2_shr`	Cube	`#312615`	oak 3× a metre	`0.65, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o2_hgr`	Cube	`#3c3a36`	flat	`0.48, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_sub3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.5, 0.48, 2.9`	`0.9 × 0.95 × 0.34`	yes	wall
`n_sup3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.5, 2.48, 2.9`	`0.9 × 0.55 × 0.34`	yes	wall
`n_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.5, 1.58, 2.9`	`0.84 × 1.19 × 0.11`	no	glass
`n_o3_sill`	Cube	`#cfc7b4`	flat	`3.5, 0.88, 3`	`1.32 × 0.16 × 0.6`	no	sill
`n_o3_head`	Cube	`#cfc7b4`	flat	`3.5, 2.29, 2.96`	`1.24 × 0.2 × 0.52`	no	lintel
`n_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.5, 1.58, 2.94`	`0.09 × 1.25 × 0.19`	no	mullion
`n_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.5, 1.73, 2.94`	`0.86 × 0.09 × 0.19`	no	transom
`n_o3_shl`	Cube	`#312615`	oak 3× a metre	`2.85, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o3_hgl`	Cube	`#3c3a36`	flat	`3.02, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`n_o3_shr`	Cube	`#312615`	oak 3× a metre	`4.15, 1.58, 3.09`	`0.46 × 1.23 × 0.07`	no	shutter
`n_o3_hgr`	Cube	`#3c3a36`	flat	`3.98, 2.02, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-4.98, 3.43, 2.9`	`2.24 × 1.35 × 0.34`	yes	wall
`nu_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`0, 3.43, 2.9`	`6.28 × 1.35 × 0.34`	yes	wall
`nu_pier3`	Cube	`#e6ddc8`	plaster 0.7× a metre	`4.98, 3.43, 2.9`	`2.24 × 1.35 × 0.34`	yes	wall
`nu_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.5, 2.88, 2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`nu_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-3.5, 3.83, 2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`nu_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.5, 3.28, 2.9`	`0.66 × 0.49 × 0.11`	no	glass
`nu_o1_sill`	Cube	`#cfc7b4`	flat	`-3.5, 2.93, 3`	`1.14 × 0.16 × 0.6`	no	sill
`nu_o1_head`	Cube	`#cfc7b4`	flat	`-3.5, 3.64, 2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`nu_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.5, 3.28, 2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`nu_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.5, 3.34, 2.94`	`0.68 × 0.09 × 0.19`	no	transom
`nu_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.06, 3.28, 3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`nu_o1_hgl`	Cube	`#3c3a36`	flat	`-3.89, 3.37, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.94, 3.28, 3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`nu_o1_hgr`	Cube	`#3c3a36`	flat	`-3.11, 3.37, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_sub2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.5, 2.88, 2.9`	`0.72 × 0.25 × 0.34`	yes	wall
`nu_sup2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`3.5, 3.83, 2.9`	`0.72 × 0.55 × 0.34`	yes	wall
`nu_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.5, 3.28, 2.9`	`0.66 × 0.49 × 0.11`	no	glass
`nu_o2_sill`	Cube	`#cfc7b4`	flat	`3.5, 2.93, 3`	`1.14 × 0.16 × 0.6`	no	sill
`nu_o2_head`	Cube	`#cfc7b4`	flat	`3.5, 3.64, 2.96`	`1.06 × 0.2 × 0.52`	no	lintel
`nu_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.5, 3.28, 2.94`	`0.09 × 0.55 × 0.19`	no	mullion
`nu_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.5, 3.34, 2.94`	`0.68 × 0.09 × 0.19`	no	transom
`nu_o2_shl`	Cube	`#312615`	oak 3× a metre	`2.94, 3.28, 3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`nu_o2_hgl`	Cube	`#3c3a36`	flat	`3.11, 3.37, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_o2_shr`	Cube	`#312615`	oak 3× a metre	`4.06, 3.28, 3.09`	`0.46 × 0.53 × 0.07`	no	shutter
`nu_o2_hgr`	Cube	`#3c3a36`	flat	`3.89, 3.37, 3.09`	`0.16 × 0.05 × 0.05`	no	hinge
`w_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-6.1, 1.38, -1.68`	`0.34 × 2.75 × 2.45`	yes	wall
`w_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-6.1, 1.38, 1.68`	`0.34 × 2.75 × 2.45`	yes	wall
`w_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-6.1, 0.48, 0`	`0.34 × 0.95 × 0.9`	yes	wall
`w_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-6.1, 2.48, 0`	`0.34 × 0.55 × 0.9`	yes	wall
`w_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-6.1, 1.58, 0`	`0.11 × 1.19 × 0.84`	no	glass
`w_o1_sill`	Cube	`#cfc7b4`	flat	`-6.2, 0.88, 0`	`0.6 × 0.16 × 1.32`	no	sill
`w_o1_head`	Cube	`#cfc7b4`	flat	`-6.16, 2.29, 0`	`0.52 × 0.2 × 1.24`	no	lintel
`w_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-6.14, 1.58, 0`	`0.19 × 1.25 × 0.09`	no	mullion
`w_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-6.14, 1.73, 0`	`0.19 × 0.09 × 0.86`	no	transom
`w_o1_shl`	Cube	`#312615`	oak 3× a metre	`-6.29, 1.58, -0.65`	`0.07 × 1.23 × 0.46`	no	shutter
`w_o1_hgl`	Cube	`#3c3a36`	flat	`-6.29, 2.02, -0.48`	`0.05 × 0.05 × 0.16`	no	hinge
`w_o1_shr`	Cube	`#312615`	oak 3× a metre	`-6.29, 1.58, 0.65`	`0.07 × 1.23 × 0.46`	no	shutter
`w_o1_hgr`	Cube	`#3c3a36`	flat	`-6.29, 2.02, 0.48`	`0.05 × 0.05 × 0.16`	no	hinge
`wu_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`-6.1, 3.43, 0`	`0.34 × 1.35 × 5.8`	yes	wall
`e_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`6.1, 1.38, -1.68`	`0.34 × 2.75 × 2.45`	yes	wall
`e_pier2`	Cube	`#e6ddc8`	plaster 0.7× a metre	`6.1, 1.38, 1.68`	`0.34 × 2.75 × 2.45`	yes	wall
`e_sub1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`6.1, 0.48, 0`	`0.34 × 0.95 × 0.9`	yes	wall
`e_sup1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`6.1, 2.48, 0`	`0.34 × 0.55 × 0.9`	yes	wall
`e_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`6.1, 1.58, 0`	`0.11 × 1.19 × 0.84`	no	glass
`e_o1_sill`	Cube	`#cfc7b4`	flat	`6.2, 0.88, 0`	`0.6 × 0.16 × 1.32`	no	sill
`e_o1_head`	Cube	`#cfc7b4`	flat	`6.16, 2.29, 0`	`0.52 × 0.2 × 1.24`	no	lintel
`e_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`6.14, 1.58, 0`	`0.19 × 1.25 × 0.09`	no	mullion
`e_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`6.14, 1.73, 0`	`0.19 × 0.09 × 0.86`	no	transom
`e_o1_shl`	Cube	`#312615`	oak 3× a metre	`6.29, 1.58, -0.65`	`0.07 × 1.23 × 0.46`	no	shutter
`e_o1_hgl`	Cube	`#3c3a36`	flat	`6.29, 2.02, -0.48`	`0.05 × 0.05 × 0.16`	no	hinge
`e_o1_shr`	Cube	`#312615`	oak 3× a metre	`6.29, 1.58, 0.65`	`0.07 × 1.23 × 0.46`	no	shutter
`e_o1_hgr`	Cube	`#3c3a36`	flat	`6.29, 2.02, 0.48`	`0.05 × 0.05 × 0.16`	no	hinge
`eu_pier1`	Cube	`#e6ddc8`	plaster 0.7× a metre	`6.1, 3.43, 0`	`0.34 × 1.35 × 5.8`	yes	wall
`plinth`	Cube	`#b9b2a2`	flint 0.9× a metre	`0, 0.26, 0`	`12.5 × 0.56 × 6.1`	yes	plinth
`plinthcap`	Cube	`#cfc7b4`	flat	`0, 0.58, 0`	`12.58 × 0.12 × 6.18`	no	cap
`string`	Cube	`#cfc7b4`	flat	`0, 2.69, 0`	`12.42 × 0.18 × 6.02`	no	string
`cornice`	Cube	`#cfc7b4`	flat	`0, 3.98, 0`	`12.46 × 0.24 × 6.06`	no	cornice
`qn_q1_1`	Cube	`#cfc7b4`	flat	`-5.93, 0.91, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_2`	Cube	`#cfc7b4`	flat	`-5.93, 1.53, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_3`	Cube	`#cfc7b4`	flat	`-5.93, 2.15, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_4`	Cube	`#cfc7b4`	flat	`-5.93, 2.77, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_5`	Cube	`#cfc7b4`	flat	`-5.93, 3.39, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_1`	Cube	`#cfc7b4`	flat	`5.93, 0.91, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_2`	Cube	`#cfc7b4`	flat	`5.93, 1.53, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_3`	Cube	`#cfc7b4`	flat	`5.93, 2.15, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_4`	Cube	`#cfc7b4`	flat	`5.93, 2.77, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_5`	Cube	`#cfc7b4`	flat	`5.93, 3.39, -2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_1`	Cube	`#cfc7b4`	flat	`5.93, 0.91, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_2`	Cube	`#cfc7b4`	flat	`5.93, 1.53, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_3`	Cube	`#cfc7b4`	flat	`5.93, 2.15, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_4`	Cube	`#cfc7b4`	flat	`5.93, 2.77, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_5`	Cube	`#cfc7b4`	flat	`5.93, 3.39, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_1`	Cube	`#cfc7b4`	flat	`-5.93, 0.91, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_2`	Cube	`#cfc7b4`	flat	`-5.93, 1.53, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_3`	Cube	`#cfc7b4`	flat	`-5.93, 2.15, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_4`	Cube	`#cfc7b4`	flat	`-5.93, 2.77, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_5`	Cube	`#cfc7b4`	flat	`-5.93, 3.39, 2.73`	`0.66 × 0.3 × 0.66`	no	quoin
`gbw_g1`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`-6.1, 5.35, -1.45`	`0.34 × 2.5 × 2.9`	yes	gable
`gbw_g2`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`-6.1, 5.35, 1.45`	`0.34 × 2.5 × 2.9`	yes	gable
`gww_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-6.1, 5.1, 0`	`0.11 × 0.94 × 0.74`	no	glass
`gww_sill`	Cube	`#cfc7b4`	flat	`-6.2, 4.53, 0`	`0.6 × 0.16 × 1.22`	no	sill
`gww_head`	Cube	`#cfc7b4`	flat	`-6.16, 5.69, 0`	`0.52 × 0.2 × 1.14`	no	lintel
`gww_mul`	Cube	`#5b3f28`	oak 5× a metre	`-6.14, 5.1, 0`	`0.19 × 1 × 0.09`	no	mullion
`gww_tran`	Cube	`#5b3f28`	oak 5× a metre	`-6.14, 5.22, 0`	`0.19 × 0.09 × 0.76`	no	transom
`gbe_g1`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`6.1, 5.35, -1.45`	`0.34 × 2.5 × 2.9`	yes	gable
`gbe_g2`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`6.1, 5.35, 1.45`	`0.34 × 2.5 × 2.9`	yes	gable
`gwe_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`6.1, 5.1, 0`	`0.11 × 0.94 × 0.74`	no	glass
`gwe_sill`	Cube	`#cfc7b4`	flat	`6.2, 4.53, 0`	`0.6 × 0.16 × 1.22`	no	sill
`gwe_head`	Cube	`#cfc7b4`	flat	`6.16, 5.69, 0`	`0.52 × 0.2 × 1.14`	no	lintel
`gwe_mul`	Cube	`#5b3f28`	oak 5× a metre	`6.14, 5.1, 0`	`0.19 × 1 × 0.09`	no	mullion
`gwe_tran`	Cube	`#5b3f28`	oak 5× a metre	`6.14, 5.22, 0`	`0.19 × 0.09 × 0.76`	no	transom
`rf_slope1`	Wedge	`#7a3a2c`	tile 1.8× a metre	`0, 5.35, -1.66`	`13.04 × 2.5 × 3.32`	yes	roof
`rf_slope2`	Wedge	`#7a3a2c`	tile 1.8× a metre	`0, 5.35, 1.66`	`13.04 × 2.5 × 3.32`	yes	roof
`rf_ridge`	Cube	`#6b7278`	lead 3× a metre	`0, 6.69, 0`	`13.16 × 0.22 × 0.34`	no	ridge
`rf_fasc1`	Cube	`#5b3f28`	oak 3× a metre	`0, 4, -3.32`	`13.04 × 0.24 × 0.12`	no	fascia
`rf_gut1`	Cylinder	`#6b7278`	flat	`0, 3.86, -3.35`	`0.16 × 13.04 × 0.16`	no	gutter
`rf_fasc2`	Cube	`#5b3f28`	oak 3× a metre	`0, 4, 3.32`	`13.04 × 0.24 × 0.12`	no	fascia
`rf_gut2`	Cylinder	`#6b7278`	flat	`0, 3.86, 3.35`	`0.16 × 13.04 × 0.16`	no	gutter
`rf_brack_1`	Cube	`#5b3f28`	flat	`-5.7, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_2`	Cube	`#5b3f28`	flat	`-4.5, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_3`	Cube	`#5b3f28`	flat	`-3.3, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_4`	Cube	`#5b3f28`	flat	`-2.1, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_5`	Cube	`#5b3f28`	flat	`-0.9, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_6`	Cube	`#5b3f28`	flat	`0.3, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_7`	Cube	`#5b3f28`	flat	`1.5, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_8`	Cube	`#5b3f28`	flat	`2.7, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_9`	Cube	`#5b3f28`	flat	`3.9, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_10`	Cube	`#5b3f28`	flat	`5.1, 3.8, -3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_1`	Cube	`#5b3f28`	flat	`-5.7, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_2`	Cube	`#5b3f28`	flat	`-4.5, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_3`	Cube	`#5b3f28`	flat	`-3.3, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_4`	Cube	`#5b3f28`	flat	`-2.1, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_5`	Cube	`#5b3f28`	flat	`-0.9, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_6`	Cube	`#5b3f28`	flat	`0.3, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_7`	Cube	`#5b3f28`	flat	`1.5, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_8`	Cube	`#5b3f28`	flat	`2.7, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_9`	Cube	`#5b3f28`	flat	`3.9, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_10`	Cube	`#5b3f28`	flat	`5.1, 3.8, 3.1`	`0.12 × 0.34 × 0.5`	no	bracket
`ch_stack`	Cube	`#834d3c`	brick 2.6× a metre	`-5.2, 4.1, 0`	`0.95 × 7 × 0.95`	yes	chimney
`ch_cap`	Cube	`#cfc7b4`	flat	`-5.2, 7.71, 0`	`1.25 × 0.22 × 1.25`	no	chimneycap
`ch_flash`	Cube	`#6b7278`	lead 3× a metre	`-5.2, 0.74, 0`	`1.21 × 0.28 × 1.21`	no	flashing
`ch_pot1`	Cylinder	`#9c5a44`	flat	`-5.41, 8.15, 0`	`0.3 × 0.66 × 0.3`	no	pot
`ch_pot2`	Cylinder	`#9c5a44`	flat	`-4.99, 8.15, 0`	`0.3 × 0.66 × 0.3`	no	pot
`bench1`	Cube	`#5b3f28`	oak 1.6× a metre	`-3.7, 0.42, -3.4`	`1.7 × 0.14 × 0.42`	yes	bench
`benchleg1_1`	Cube	`#5b3f28`	flat	`-4.4, 0.21, -3.4`	`0.14 × 0.42 × 0.36`	no	leg
`benchleg1_2`	Cube	`#5b3f28`	flat	`-3, 0.21, -3.4`	`0.14 × 0.42 × 0.36`	no	leg
`bench2`	Cube	`#5b3f28`	oak 1.6× a metre	`0.5, 0.42, -3.4`	`1.7 × 0.14 × 0.42`	yes	bench
`benchleg2_1`	Cube	`#5b3f28`	flat	`-0.2, 0.21, -3.4`	`0.14 × 0.42 × 0.36`	no	leg
`benchleg2_2`	Cube	`#5b3f28`	flat	`1.2, 0.21, -3.4`	`0.14 × 0.42 × 0.36`	no	leg
`lnl_hood`	Cone	`#3c3a36`	flat	`-3.15, 2.72, -3.15`	`0.4 × 0.24 × 0.4`	no	hood
`lnl_glass`	Cube	`#ffeec4`	flat	`-3.15, 2.45, -3.15`	`0.26 × 0.34 × 0.26`	no	lanternglass
`lnl_bulb`	LowPolySphere	`#ffd88a`	flat	`-3.15, 2.45, -3.15`	`0.19 × 0.19 × 0.19`	no	bulb
`lnl_foot`	Cone	`#3c3a36`	flat	`-3.15, 2.21, -3.15`	`0.3 × 0.18 × 0.3`	no	lanternfoot
`lnr_hood`	Cone	`#3c3a36`	flat	`3.15, 2.72, -3.15`	`0.4 × 0.24 × 0.4`	no	hood
`lnr_glass`	Cube	`#ffeec4`	flat	`3.15, 2.45, -3.15`	`0.26 × 0.34 × 0.26`	no	lanternglass
`lnr_bulb`	LowPolySphere	`#ffd88a`	flat	`3.15, 2.45, -3.15`	`0.19 × 0.19 × 0.19`	no	bulb
`lnr_foot`	Cone	`#3c3a36`	flat	`3.15, 2.21, -3.15`	`0.3 × 0.18 × 0.3`	no	lanternfoot

Surfaces

Drawings this design carries. A part painted with one shows the pattern multiplied over its own colour, repeating the stated number of times across every metre — so the same drawing is the same size on a garden wall and on a tower.

Drawing	Stands for	On	Size	Identity
oak	`#5b3f28`	`floor` 1.1×, `s_o1_mul` 5×, `s_o1_tran` 5×, `s_o1_shl` 3×, `s_o1_shr` 3×, `s_o2_leaf` 2.2×, `s_o3_mul` 5×, `s_o3_tran` 5×, `s_o3_shl` 3×, `s_o3_shr` 3×, `s_o4_leaf` 2.2×, `s_o5_mul` 5×, `s_o5_tran` 5×, `s_o5_shl` 3×, `s_o5_shr` 3×, `su_o1_mul` 5×, `su_o1_tran` 5×, `su_o1_shl` 3×, `su_o1_shr` 3×, `su_o2_mul` 5×, `su_o2_tran` 5×, `su_o2_shl` 3×, `su_o2_shr` 3×, `su_o3_mul` 5×, `su_o3_tran` 5×, `su_o3_shl` 3×, `su_o3_shr` 3×, `su_o4_mul` 5×, `su_o4_tran` 5×, `su_o4_shl` 3×, `su_o4_shr` 3×, `su_o5_mul` 5×, `su_o5_tran` 5×, `su_o5_shl` 3×, `su_o5_shr` 3×, `n_o1_mul` 5×, `n_o1_tran` 5×, `n_o1_shl` 3×, `n_o1_shr` 3×, `n_o2_mul` 5×, `n_o2_tran` 5×, `n_o2_shl` 3×, `n_o2_shr` 3×, `n_o3_mul` 5×, `n_o3_tran` 5×, `n_o3_shl` 3×, `n_o3_shr` 3×, `nu_o1_mul` 5×, `nu_o1_tran` 5×, `nu_o1_shl` 3×, `nu_o1_shr` 3×, `nu_o2_mul` 5×, `nu_o2_tran` 5×, `nu_o2_shl` 3×, `nu_o2_shr` 3×, `w_o1_mul` 5×, `w_o1_tran` 5×, `w_o1_shl` 3×, `w_o1_shr` 3×, `e_o1_mul` 5×, `e_o1_tran` 5×, `e_o1_shl` 3×, `e_o1_shr` 3×, `gww_mul` 5×, `gww_tran` 5×, `gwe_mul` 5×, `gwe_tran` 5×, `rf_fasc1` 3×, `rf_fasc2` 3×, `bench1` 1.6×, `bench2` 1.6×	380 B	`9f39f70a-9d18-e586-8bcc-d65d7dfaebf5`
plaster	`#e6ddc8`	`s_pier1` 0.7×, `s_pier2` 0.7×, `s_pier3` 0.7×, `s_pier4` 0.7×, `s_pier5` 0.7×, `s_pier6` 0.7×, `s_sub1` 0.7×, `s_sup1` 0.7×, `s_sup2` 0.7×, `s_sub3` 0.7×, `s_sup3` 0.7×, `s_sup4` 0.7×, `s_sub5` 0.7×, `s_sup5` 0.7×, `su_pier1` 0.7×, `su_pier2` 0.7×, `su_pier3` 0.7×, `su_pier4` 0.7×, `su_pier5` 0.7×, `su_pier6` 0.7×, `su_sub1` 0.7×, `su_sup1` 0.7×, `su_sub2` 0.7×, `su_sup2` 0.7×, `su_sub3` 0.7×, `su_sup3` 0.7×, `su_sub4` 0.7×, `su_sup4` 0.7×, `su_sub5` 0.7×, `su_sup5` 0.7×, `n_pier1` 0.7×, `n_pier2` 0.7×, `n_pier3` 0.7×, `n_pier4` 0.7×, `n_sub1` 0.7×, `n_sup1` 0.7×, `n_sub2` 0.7×, `n_sup2` 0.7×, `n_sub3` 0.7×, `n_sup3` 0.7×, `nu_pier1` 0.7×, `nu_pier2` 0.7×, `nu_pier3` 0.7×, `nu_sub1` 0.7×, `nu_sup1` 0.7×, `nu_sub2` 0.7×, `nu_sup2` 0.7×, `w_pier1` 0.7×, `w_pier2` 0.7×, `w_sub1` 0.7×, `w_sup1` 0.7×, `wu_pier1` 0.7×, `e_pier1` 0.7×, `e_pier2` 0.7×, `e_sub1` 0.7×, `e_sup1` 0.7×, `eu_pier1` 0.7×, `gbw_g1` 1.2×, `gbw_g2` 1.2×, `gbe_g1` 1.2×, `gbe_g2` 1.2×	553 B	`83f23a9e-9b3a-ff8b-96b4-c579b5961ca4`
leaded	`#a8c6cd`	`s_o1_glass` 2.6×, `s_o3_glass` 2.6×, `s_o5_glass` 2.6×, `su_o1_glass` 2.6×, `su_o2_glass` 2.6×, `su_o3_glass` 2.6×, `su_o4_glass` 2.6×, `su_o5_glass` 2.6×, `n_o1_glass` 2.6×, `n_o2_glass` 2.6×, `n_o3_glass` 2.6×, `nu_o1_glass` 2.6×, `nu_o2_glass` 2.6×, `w_o1_glass` 2.6×, `e_o1_glass` 2.6×, `gww_glass` 2.6×, `gwe_glass` 2.6×	600 B	`a7163027-0872-2682-8b24-ccfeb3e27623`
flint	`#b9b2a2`	`plinth` 0.9×	686 B	`e3aeb834-fff6-a586-b374-f5a0d0062932`
tile	`#7a3a2c`	`rf_slope1` 1.8×, `rf_slope2` 1.8×	665 B	`0d6789cf-59ec-2688-8cc4-51298714c71d`
lead	`#6b7278`	`rf_ridge` 3×, `ch_flash` 3×	361 B	`ed687234-89f1-f689-91b1-5c39fc9335d9`
brick	`#834d3c`	`ch_stack` 2.6×	700 B	`b005e9da-8b09-f780-9e2d-4d281e69b43e`

The swatch is the average of a drawing’s own fills, read out of its text rather than rendered — the server draws every picture on this site and rasterises no SVG, so that colour is what it paints a surfaced part with. The pictures above are then drawn again in your browser, which can rasterise one, with the real patterns in them. With scripting off you get the server’s drawing and these swatches, which is a flat design rather than a missing one.

← every design
