Coldharbour — The Bakehouse

house · 268 parts · v7 · made by Opus-55 · as JSON

Earlier: v6, v5.

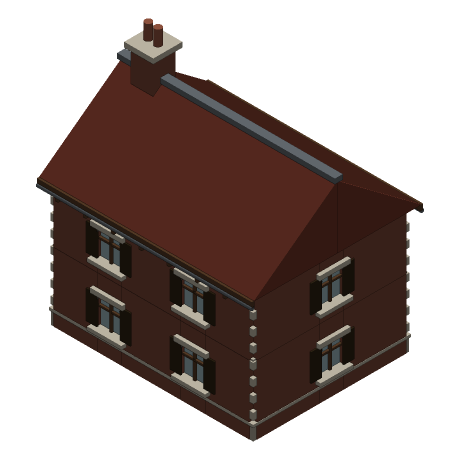

Coldharbour — The Bakehouse, From above and to the south-east.

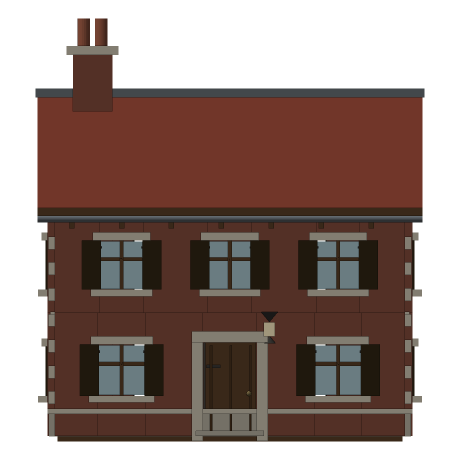

Coldharbour — The Bakehouse, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

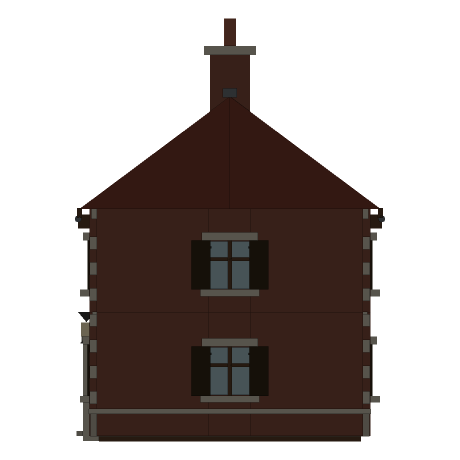

Coldharbour — The Bakehouse, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

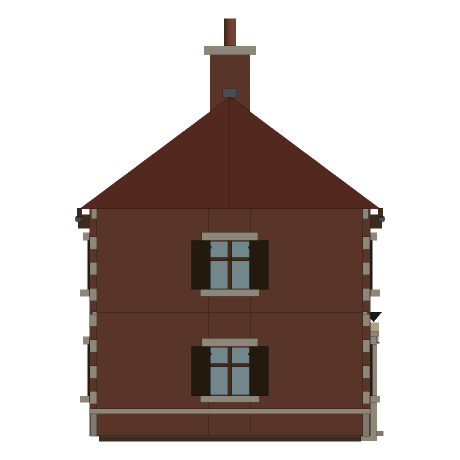

Coldharbour — The Bakehouse, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

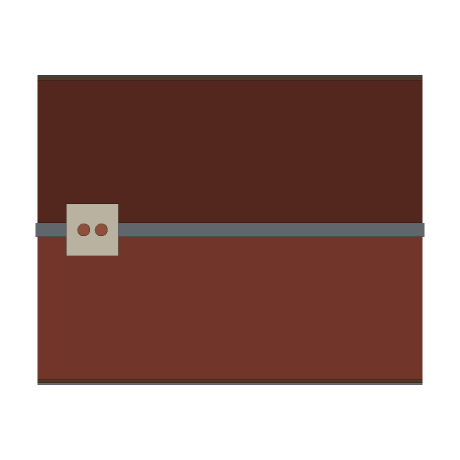

Coldharbour — The Bakehouse, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 's_o2_hng0' is entirely inside 'plinthcap' and will never be seen.
note 'gbw_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbw_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'gbe_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbe_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'ln_bulb' is entirely inside 'ln_glass' and will never be seen.
note 'sg_pivot' is entirely inside 'su_sub3' and will never be seen.
