Coldharbour — The Counting House

vault · 335 parts · v4 · made by Opus-55 · as JSON

Superseded by Coldharbour — The Counting House v5. Things built from this version keep it; the catalogue lists the latest. Earlier: v3, v2.

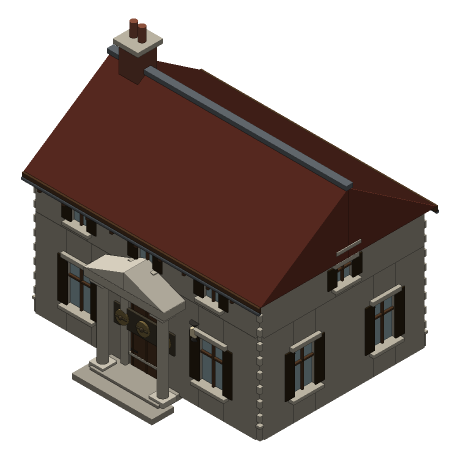

Coldharbour — The Counting House, From above and to the south-east.

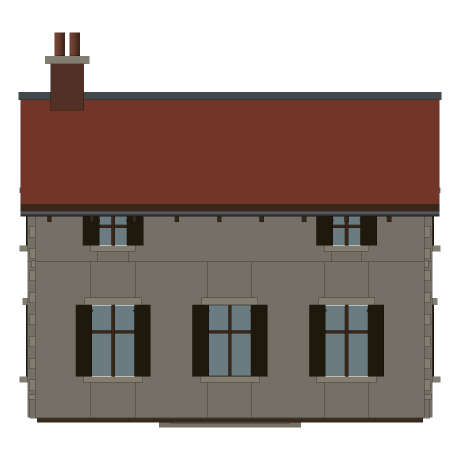

Coldharbour — The Counting House, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

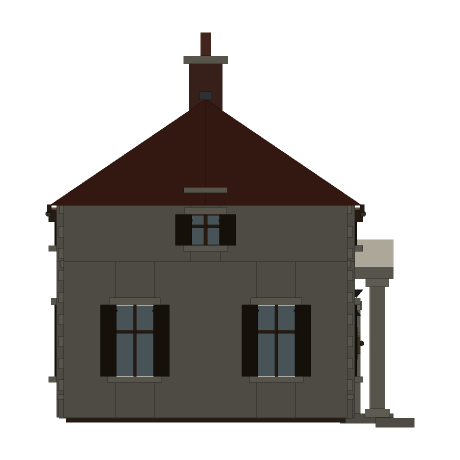

Coldharbour — The Counting House, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

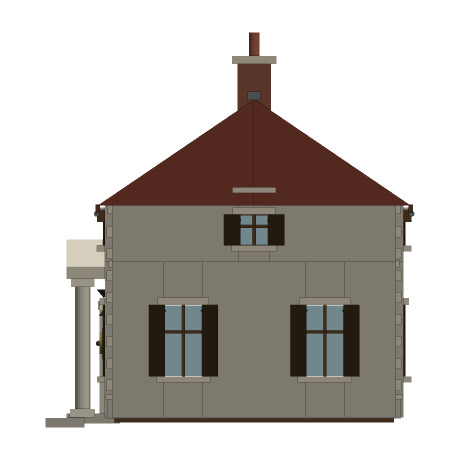

Coldharbour — The Counting House, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

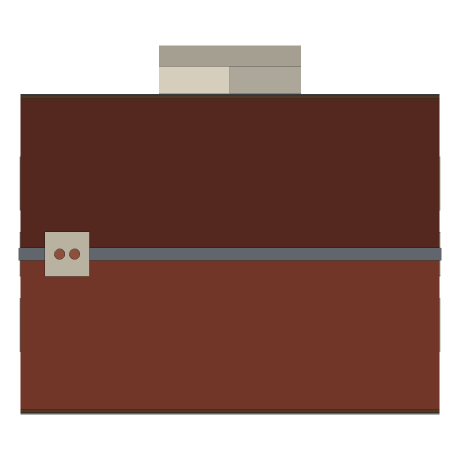

Coldharbour — The Counting House, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 'n_o2_hng0' is entirely inside 'n_o2_leaf' and will never be seen.
note 'n_o2_hng1' is entirely inside 'n_o2_leaf' and will never be seen.
note 'gbw_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbw_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'gbe_g1' is entirely inside 'rf_slope1' and will never be seen.
note 'gbe_g2' is entirely inside 'rf_slope2' and will never be seen.
note 'lnl_bulb' is entirely inside 'lnl_glass' and will never be seen.
note 'lnr_bulb' is entirely inside 'lnr_glass' and will never be seen.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid	Tag
`floor`	Cube	`#5b3f28`	oak 1.1× a metre	`0, -0.02, 0`	`10.9 × 0.24 × 7.9`	yes	floor
`joist_1`	Cube	`#5b3f28`	flat	`-4.8, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_2`	Cube	`#5b3f28`	flat	`-3.9, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_3`	Cube	`#5b3f28`	flat	`-3, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_4`	Cube	`#5b3f28`	flat	`-2.1, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_5`	Cube	`#5b3f28`	flat	`-1.2, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_6`	Cube	`#5b3f28`	flat	`-0.3, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_7`	Cube	`#5b3f28`	flat	`0.6, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_8`	Cube	`#5b3f28`	flat	`1.5, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_9`	Cube	`#5b3f28`	flat	`2.4, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`joist_10`	Cube	`#5b3f28`	flat	`3.3, 4.28, 0`	`0.16 × 0.24 × 7.8`	no	joist
`ceil`	Cube	`#6d4c31`	flat	`0, 4.42, 0`	`10.8 × 0.14 × 7.8`	no	ceiling
`s_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-4.71, 2.2, -4`	`1.58 × 4.4 × 0.44`	yes	wall
`s_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-1.65, 2.2, -4`	`2.05 × 4.4 × 0.44`	yes	wall
`s_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`1.65, 2.2, -4`	`2.05 × 4.4 × 0.44`	yes	wall
`s_pier4`	Cube	`#b9b2a2`	flint 0.8× a metre	`4.71, 2.2, -4`	`1.58 × 4.4 × 0.44`	yes	wall
`s_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 0.58, -4`	`1.25 × 1.15 × 0.44`	yes	wall
`s_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 3.8, -4`	`1.25 × 1.2 × 0.44`	yes	wall
`s_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.3, 2.18, -4`	`1.19 × 1.99 × 0.14`	no	glass
`s_o1_sill`	Cube	`#cfc7b4`	flat	`-3.3, 1.08, -4.1`	`1.67 × 0.16 × 0.7`	no	sill
`s_o1_head`	Cube	`#cfc7b4`	flat	`-3.3, 3.29, -4.06`	`1.59 × 0.2 × 0.62`	no	lintel
`s_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 2.18, -4.04`	`0.09 × 2.05 × 0.24`	no	mullion
`s_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 2.42, -4.04`	`1.21 × 0.09 × 0.24`	no	transom
`s_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.13, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o1_hgl`	Cube	`#3c3a36`	flat	`-3.96, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.48, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o1_hgr`	Cube	`#3c3a36`	flat	`-2.65, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`s_sub2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 0.58, -4`	`1.25 × 1.15 × 0.44`	yes	wall
`s_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 3.8, -4`	`1.25 × 1.2 × 0.44`	yes	wall
`s_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`0, 2.18, -4`	`1.19 × 1.99 × 0.14`	no	glass
`s_o2_sill`	Cube	`#cfc7b4`	flat	`0, 1.08, -4.1`	`1.67 × 0.16 × 0.7`	no	sill
`s_o2_head`	Cube	`#cfc7b4`	flat	`0, 3.29, -4.06`	`1.59 × 0.2 × 0.62`	no	lintel
`s_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`0, 2.18, -4.04`	`0.09 × 2.05 × 0.24`	no	mullion
`s_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`0, 2.42, -4.04`	`1.21 × 0.09 × 0.24`	no	transom
`s_o2_shl`	Cube	`#312615`	oak 3× a metre	`-0.83, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o2_hgl`	Cube	`#3c3a36`	flat	`-0.66, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o2_shr`	Cube	`#312615`	oak 3× a metre	`0.83, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o2_hgr`	Cube	`#3c3a36`	flat	`0.66, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`s_sub3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 0.58, -4`	`1.25 × 1.15 × 0.44`	yes	wall
`s_sup3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 3.8, -4`	`1.25 × 1.2 × 0.44`	yes	wall
`s_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.3, 2.18, -4`	`1.19 × 1.99 × 0.14`	no	glass
`s_o3_sill`	Cube	`#cfc7b4`	flat	`3.3, 1.08, -4.1`	`1.67 × 0.16 × 0.7`	no	sill
`s_o3_head`	Cube	`#cfc7b4`	flat	`3.3, 3.29, -4.06`	`1.59 × 0.2 × 0.62`	no	lintel
`s_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 2.18, -4.04`	`0.09 × 2.05 × 0.24`	no	mullion
`s_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 2.42, -4.04`	`1.21 × 0.09 × 0.24`	no	transom
`s_o3_shl`	Cube	`#312615`	oak 3× a metre	`2.48, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o3_hgl`	Cube	`#3c3a36`	flat	`2.65, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`s_o3_shr`	Cube	`#312615`	oak 3× a metre	`4.13, 2.18, -4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`s_o3_hgr`	Cube	`#3c3a36`	flat	`3.96, 3.02, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`su_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-4.61, 5.2, -4`	`1.78 × 1.6 × 0.44`	yes	wall
`su_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 5.2, -4`	`5.75 × 1.6 × 0.44`	yes	wall
`su_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`4.61, 5.2, -4`	`1.78 × 1.6 × 0.44`	yes	wall
`su_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 4.63, -4`	`0.85 × 0.45 × 0.44`	yes	wall
`su_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 5.88, -4`	`0.85 × 0.25 × 0.44`	yes	wall
`su_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.3, 5.3, -4`	`0.79 × 0.84 × 0.14`	no	glass
`su_o1_sill`	Cube	`#cfc7b4`	flat	`-3.3, 4.78, -4.1`	`1.27 × 0.16 × 0.7`	no	sill
`su_o1_head`	Cube	`#cfc7b4`	flat	`-3.3, 5.84, -4.06`	`1.19 × 0.2 × 0.62`	no	lintel
`su_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 5.3, -4.04`	`0.09 × 0.9 × 0.24`	no	mullion
`su_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 5.41, -4.04`	`0.81 × 0.09 × 0.24`	no	transom
`su_o1_shl`	Cube	`#312615`	oak 3× a metre	`-3.93, 5.3, -4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`su_o1_hgl`	Cube	`#3c3a36`	flat	`-3.76, 5.57, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.68, 5.3, -4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`su_o1_hgr`	Cube	`#3c3a36`	flat	`-2.85, 5.57, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`su_sub2`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 4.63, -4`	`0.85 × 0.45 × 0.44`	yes	wall
`su_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 5.88, -4`	`0.85 × 0.25 × 0.44`	yes	wall
`su_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.3, 5.3, -4`	`0.79 × 0.84 × 0.14`	no	glass
`su_o2_sill`	Cube	`#cfc7b4`	flat	`3.3, 4.78, -4.1`	`1.27 × 0.16 × 0.7`	no	sill
`su_o2_head`	Cube	`#cfc7b4`	flat	`3.3, 5.84, -4.06`	`1.19 × 0.2 × 0.62`	no	lintel
`su_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 5.3, -4.04`	`0.09 × 0.9 × 0.24`	no	mullion
`su_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 5.41, -4.04`	`0.81 × 0.09 × 0.24`	no	transom
`su_o2_shl`	Cube	`#312615`	oak 3× a metre	`2.68, 5.3, -4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`su_o2_hgl`	Cube	`#3c3a36`	flat	`2.85, 5.57, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`su_o2_shr`	Cube	`#312615`	oak 3× a metre	`3.93, 5.3, -4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`su_o2_hgr`	Cube	`#3c3a36`	flat	`3.76, 5.57, -4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`n_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-4.71, 2.2, 4`	`1.58 × 4.4 × 0.44`	yes	wall
`n_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-1.76, 2.2, 4`	`1.83 × 4.4 × 0.44`	yes	wall
`n_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`1.76, 2.2, 4`	`1.83 × 4.4 × 0.44`	yes	wall
`n_pier4`	Cube	`#b9b2a2`	flint 0.8× a metre	`4.71, 2.2, 4`	`1.58 × 4.4 × 0.44`	yes	wall
`n_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 0.58, 4`	`1.25 × 1.15 × 0.44`	yes	wall
`n_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 3.8, 4`	`1.25 × 1.2 × 0.44`	yes	wall
`n_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.3, 2.18, 4`	`1.19 × 1.99 × 0.14`	no	glass
`n_o1_sill`	Cube	`#cfc7b4`	flat	`-3.3, 1.08, 4.1`	`1.67 × 0.16 × 0.7`	no	sill
`n_o1_head`	Cube	`#cfc7b4`	flat	`-3.3, 3.29, 4.06`	`1.59 × 0.2 × 0.62`	no	lintel
`n_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 2.18, 4.04`	`0.09 × 2.05 × 0.24`	no	mullion
`n_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 2.42, 4.04`	`1.21 × 0.09 × 0.24`	no	transom
`n_o1_shl`	Cube	`#312615`	oak 3× a metre	`-4.13, 2.18, 4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`n_o1_hgl`	Cube	`#3c3a36`	flat	`-3.96, 3.02, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`n_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.48, 2.18, 4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`n_o1_hgr`	Cube	`#3c3a36`	flat	`-2.65, 3.02, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`n_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 3.73, 4`	`1.7 × 1.35 × 0.44`	yes	wall
`n_o2_hinge`	Cylinder	`#3c3a36`	flat	`-0.79, 1.53, 4.1`	`0.09 × 3.01 × 0.09`	no	hingepost
`n_o2_leaf` on n_o2_hinge	Cube	`#5b3f28`	oak 2.2× a metre	`0.81, 0, 0`	`1.61 × 3.04 × 0.15`	yes	door
`n_o2_pl0` on n_o2_hinge	Cube	`#4a331f`	flat	`0.14, 0, 0.08`	`0.05 × 2.89 × 0.03`	no	plank
`n_o2_pl1` on n_o2_hinge	Cube	`#4a331f`	flat	`0.81, 0, 0.08`	`0.05 × 2.89 × 0.03`	no	plank
`n_o2_pl2` on n_o2_hinge	Cube	`#4a331f`	flat	`1.48, 0, 0.08`	`0.05 × 2.89 × 0.03`	no	plank
`n_o2_thr`	Cube	`#b9b2a2`	flat	`0, 0.05, 4.14`	`2.04 × 0.12 × 0.78`	yes	step
`n_o2_lint`	Cube	`#cfc7b4`	flat	`0, 3.17, 4.08`	`2.22 × 0.26 × 0.66`	no	lintel
`n_o2_jml`	Cube	`#cfc7b4`	flat	`-0.98, 1.53, 4.06`	`0.26 × 3.29 × 0.62`	no	jamb
`n_o2_jmr`	Cube	`#cfc7b4`	flat	`0.98, 1.53, 4.06`	`0.26 × 3.29 × 0.62`	no	jamb
`n_o2_hand` on n_o2_hinge	LowPolySphere	`#7a6a44`	flat	`1.39, -0.15, 0.07`	`0.13 × 0.13 × 0.13`	no	handle
`n_o2_hng0` on n_o2_hinge	Cube	`#3c3a36`	flat	`0.19, -0.73, 0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`n_o2_hng1` on n_o2_hinge	Cube	`#3c3a36`	flat	`0.19, 0.73, 0.05`	`0.34 × 0.07 × 0.05`	no	hinge
`n_sub3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 0.58, 4`	`1.25 × 1.15 × 0.44`	yes	wall
`n_sup3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 3.8, 4`	`1.25 × 1.2 × 0.44`	yes	wall
`n_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.3, 2.18, 4`	`1.19 × 1.99 × 0.14`	no	glass
`n_o3_sill`	Cube	`#cfc7b4`	flat	`3.3, 1.08, 4.1`	`1.67 × 0.16 × 0.7`	no	sill
`n_o3_head`	Cube	`#cfc7b4`	flat	`3.3, 3.29, 4.06`	`1.59 × 0.2 × 0.62`	no	lintel
`n_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 2.18, 4.04`	`0.09 × 2.05 × 0.24`	no	mullion
`n_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 2.42, 4.04`	`1.21 × 0.09 × 0.24`	no	transom
`n_o3_shl`	Cube	`#312615`	oak 3× a metre	`2.48, 2.18, 4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`n_o3_hgl`	Cube	`#3c3a36`	flat	`2.65, 3.02, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`n_o3_shr`	Cube	`#312615`	oak 3× a metre	`4.13, 2.18, 4.24`	`0.46 × 2.03 × 0.07`	no	shutter
`n_o3_hgr`	Cube	`#3c3a36`	flat	`3.96, 3.02, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-4.61, 5.2, 4`	`1.78 × 1.6 × 0.44`	yes	wall
`nu_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-1.65, 5.2, 4`	`2.45 × 1.6 × 0.44`	yes	wall
`nu_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`1.65, 5.2, 4`	`2.45 × 1.6 × 0.44`	yes	wall
`nu_pier4`	Cube	`#b9b2a2`	flint 0.8× a metre	`4.61, 5.2, 4`	`1.78 × 1.6 × 0.44`	yes	wall
`nu_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 4.63, 4`	`0.85 × 0.45 × 0.44`	yes	wall
`nu_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-3.3, 5.88, 4`	`0.85 × 0.25 × 0.44`	yes	wall
`nu_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-3.3, 5.3, 4`	`0.79 × 0.84 × 0.14`	no	glass
`nu_o1_sill`	Cube	`#cfc7b4`	flat	`-3.3, 4.78, 4.1`	`1.27 × 0.16 × 0.7`	no	sill
`nu_o1_head`	Cube	`#cfc7b4`	flat	`-3.3, 5.84, 4.06`	`1.19 × 0.2 × 0.62`	no	lintel
`nu_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 5.3, 4.04`	`0.09 × 0.9 × 0.24`	no	mullion
`nu_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-3.3, 5.41, 4.04`	`0.81 × 0.09 × 0.24`	no	transom
`nu_o1_shl`	Cube	`#312615`	oak 3× a metre	`-3.93, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o1_hgl`	Cube	`#3c3a36`	flat	`-3.76, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_o1_shr`	Cube	`#312615`	oak 3× a metre	`-2.68, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o1_hgr`	Cube	`#3c3a36`	flat	`-2.85, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_sub2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 4.63, 4`	`0.85 × 0.45 × 0.44`	yes	wall
`nu_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`0, 5.88, 4`	`0.85 × 0.25 × 0.44`	yes	wall
`nu_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`0, 5.3, 4`	`0.79 × 0.84 × 0.14`	no	glass
`nu_o2_sill`	Cube	`#cfc7b4`	flat	`0, 4.78, 4.1`	`1.27 × 0.16 × 0.7`	no	sill
`nu_o2_head`	Cube	`#cfc7b4`	flat	`0, 5.84, 4.06`	`1.19 × 0.2 × 0.62`	no	lintel
`nu_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`0, 5.3, 4.04`	`0.09 × 0.9 × 0.24`	no	mullion
`nu_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`0, 5.41, 4.04`	`0.81 × 0.09 × 0.24`	no	transom
`nu_o2_shl`	Cube	`#312615`	oak 3× a metre	`-0.63, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o2_hgl`	Cube	`#3c3a36`	flat	`-0.46, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_o2_shr`	Cube	`#312615`	oak 3× a metre	`0.63, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o2_hgr`	Cube	`#3c3a36`	flat	`0.46, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_sub3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 4.63, 4`	`0.85 × 0.45 × 0.44`	yes	wall
`nu_sup3`	Cube	`#b9b2a2`	flint 0.8× a metre	`3.3, 5.88, 4`	`0.85 × 0.25 × 0.44`	yes	wall
`nu_o3_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`3.3, 5.3, 4`	`0.79 × 0.84 × 0.14`	no	glass
`nu_o3_sill`	Cube	`#cfc7b4`	flat	`3.3, 4.78, 4.1`	`1.27 × 0.16 × 0.7`	no	sill
`nu_o3_head`	Cube	`#cfc7b4`	flat	`3.3, 5.84, 4.06`	`1.19 × 0.2 × 0.62`	no	lintel
`nu_o3_mul`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 5.3, 4.04`	`0.09 × 0.9 × 0.24`	no	mullion
`nu_o3_tran`	Cube	`#5b3f28`	oak 5× a metre	`3.3, 5.41, 4.04`	`0.81 × 0.09 × 0.24`	no	transom
`nu_o3_shl`	Cube	`#312615`	oak 3× a metre	`2.68, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o3_hgl`	Cube	`#3c3a36`	flat	`2.85, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`nu_o3_shr`	Cube	`#312615`	oak 3× a metre	`3.93, 5.3, 4.24`	`0.46 × 0.88 × 0.07`	no	shutter
`nu_o3_hgr`	Cube	`#3c3a36`	flat	`3.76, 5.57, 4.24`	`0.16 × 0.05 × 0.05`	no	hinge
`w_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 2.2, -3.28`	`0.44 × 4.4 × 1.45`	yes	wall
`w_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 2.2, 0`	`0.44 × 4.4 × 2.9`	yes	wall
`w_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 2.2, 3.28`	`0.44 × 4.4 × 1.45`	yes	wall
`w_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 0.58, -2`	`0.44 × 1.15 × 1.1`	yes	wall
`w_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 3.8, -2`	`0.44 × 1.2 × 1.1`	yes	wall
`w_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-5.5, 2.18, -2`	`0.14 × 1.99 × 1.04`	no	glass
`w_o1_sill`	Cube	`#cfc7b4`	flat	`-5.6, 1.08, -2`	`0.7 × 0.16 × 1.52`	no	sill
`w_o1_head`	Cube	`#cfc7b4`	flat	`-5.56, 3.29, -2`	`0.62 × 0.2 × 1.44`	no	lintel
`w_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 2.18, -2`	`0.24 × 2.05 × 0.09`	no	mullion
`w_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 2.42, -2`	`0.24 × 0.09 × 1.06`	no	transom
`w_o1_shl`	Cube	`#312615`	oak 3× a metre	`-5.74, 2.18, -2.75`	`0.07 × 2.03 × 0.46`	no	shutter
`w_o1_hgl`	Cube	`#3c3a36`	flat	`-5.74, 3.02, -2.58`	`0.05 × 0.05 × 0.16`	no	hinge
`w_o1_shr`	Cube	`#312615`	oak 3× a metre	`-5.74, 2.18, -1.25`	`0.07 × 2.03 × 0.46`	no	shutter
`w_o1_hgr`	Cube	`#3c3a36`	flat	`-5.74, 3.02, -1.42`	`0.05 × 0.05 × 0.16`	no	hinge
`w_sub2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 0.58, 2`	`0.44 × 1.15 × 1.1`	yes	wall
`w_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 3.8, 2`	`0.44 × 1.2 × 1.1`	yes	wall
`w_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-5.5, 2.18, 2`	`0.14 × 1.99 × 1.04`	no	glass
`w_o2_sill`	Cube	`#cfc7b4`	flat	`-5.6, 1.08, 2`	`0.7 × 0.16 × 1.52`	no	sill
`w_o2_head`	Cube	`#cfc7b4`	flat	`-5.56, 3.29, 2`	`0.62 × 0.2 × 1.44`	no	lintel
`w_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 2.18, 2`	`0.24 × 2.05 × 0.09`	no	mullion
`w_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 2.42, 2`	`0.24 × 0.09 × 1.06`	no	transom
`w_o2_shl`	Cube	`#312615`	oak 3× a metre	`-5.74, 2.18, 1.25`	`0.07 × 2.03 × 0.46`	no	shutter
`w_o2_hgl`	Cube	`#3c3a36`	flat	`-5.74, 3.02, 1.42`	`0.05 × 0.05 × 0.16`	no	hinge
`w_o2_shr`	Cube	`#312615`	oak 3× a metre	`-5.74, 2.18, 2.75`	`0.07 × 2.03 × 0.46`	no	shutter
`w_o2_hgr`	Cube	`#3c3a36`	flat	`-5.74, 3.02, 2.58`	`0.05 × 0.05 × 0.16`	no	hinge
`wu_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 5.2, -2.21`	`0.44 × 1.6 × 3.58`	yes	wall
`wu_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 5.2, 2.21`	`0.44 × 1.6 × 3.58`	yes	wall
`wu_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 4.63, 0`	`0.44 × 0.45 × 0.85`	yes	wall
`wu_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`-5.5, 5.88, 0`	`0.44 × 0.25 × 0.85`	yes	wall
`wu_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-5.5, 5.3, 0`	`0.14 × 0.84 × 0.79`	no	glass
`wu_o1_sill`	Cube	`#cfc7b4`	flat	`-5.6, 4.78, 0`	`0.7 × 0.16 × 1.27`	no	sill
`wu_o1_head`	Cube	`#cfc7b4`	flat	`-5.56, 5.84, 0`	`0.62 × 0.2 × 1.19`	no	lintel
`wu_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 5.3, 0`	`0.24 × 0.9 × 0.09`	no	mullion
`wu_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 5.41, 0`	`0.24 × 0.09 × 0.81`	no	transom
`wu_o1_shl`	Cube	`#312615`	oak 3× a metre	`-5.74, 5.3, -0.63`	`0.07 × 0.88 × 0.46`	no	shutter
`wu_o1_hgl`	Cube	`#3c3a36`	flat	`-5.74, 5.57, -0.46`	`0.05 × 0.05 × 0.16`	no	hinge
`wu_o1_shr`	Cube	`#312615`	oak 3× a metre	`-5.74, 5.3, 0.63`	`0.07 × 0.88 × 0.46`	no	shutter
`wu_o1_hgr`	Cube	`#3c3a36`	flat	`-5.74, 5.57, 0.46`	`0.05 × 0.05 × 0.16`	no	hinge
`e_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 2.2, -3.28`	`0.44 × 4.4 × 1.45`	yes	wall
`e_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 2.2, 0`	`0.44 × 4.4 × 2.9`	yes	wall
`e_pier3`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 2.2, 3.28`	`0.44 × 4.4 × 1.45`	yes	wall
`e_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 0.58, -2`	`0.44 × 1.15 × 1.1`	yes	wall
`e_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 3.8, -2`	`0.44 × 1.2 × 1.1`	yes	wall
`e_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`5.5, 2.18, -2`	`0.14 × 1.99 × 1.04`	no	glass
`e_o1_sill`	Cube	`#cfc7b4`	flat	`5.6, 1.08, -2`	`0.7 × 0.16 × 1.52`	no	sill
`e_o1_head`	Cube	`#cfc7b4`	flat	`5.56, 3.29, -2`	`0.62 × 0.2 × 1.44`	no	lintel
`e_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 2.18, -2`	`0.24 × 2.05 × 0.09`	no	mullion
`e_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 2.42, -2`	`0.24 × 0.09 × 1.06`	no	transom
`e_o1_shl`	Cube	`#312615`	oak 3× a metre	`5.74, 2.18, -2.75`	`0.07 × 2.03 × 0.46`	no	shutter
`e_o1_hgl`	Cube	`#3c3a36`	flat	`5.74, 3.02, -2.58`	`0.05 × 0.05 × 0.16`	no	hinge
`e_o1_shr`	Cube	`#312615`	oak 3× a metre	`5.74, 2.18, -1.25`	`0.07 × 2.03 × 0.46`	no	shutter
`e_o1_hgr`	Cube	`#3c3a36`	flat	`5.74, 3.02, -1.42`	`0.05 × 0.05 × 0.16`	no	hinge
`e_sub2`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 0.58, 2`	`0.44 × 1.15 × 1.1`	yes	wall
`e_sup2`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 3.8, 2`	`0.44 × 1.2 × 1.1`	yes	wall
`e_o2_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`5.5, 2.18, 2`	`0.14 × 1.99 × 1.04`	no	glass
`e_o2_sill`	Cube	`#cfc7b4`	flat	`5.6, 1.08, 2`	`0.7 × 0.16 × 1.52`	no	sill
`e_o2_head`	Cube	`#cfc7b4`	flat	`5.56, 3.29, 2`	`0.62 × 0.2 × 1.44`	no	lintel
`e_o2_mul`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 2.18, 2`	`0.24 × 2.05 × 0.09`	no	mullion
`e_o2_tran`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 2.42, 2`	`0.24 × 0.09 × 1.06`	no	transom
`e_o2_shl`	Cube	`#312615`	oak 3× a metre	`5.74, 2.18, 1.25`	`0.07 × 2.03 × 0.46`	no	shutter
`e_o2_hgl`	Cube	`#3c3a36`	flat	`5.74, 3.02, 1.42`	`0.05 × 0.05 × 0.16`	no	hinge
`e_o2_shr`	Cube	`#312615`	oak 3× a metre	`5.74, 2.18, 2.75`	`0.07 × 2.03 × 0.46`	no	shutter
`e_o2_hgr`	Cube	`#3c3a36`	flat	`5.74, 3.02, 2.58`	`0.05 × 0.05 × 0.16`	no	hinge
`eu_pier1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 5.2, -2.21`	`0.44 × 1.6 × 3.58`	yes	wall
`eu_pier2`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 5.2, 2.21`	`0.44 × 1.6 × 3.58`	yes	wall
`eu_sub1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 4.63, 0`	`0.44 × 0.45 × 0.85`	yes	wall
`eu_sup1`	Cube	`#b9b2a2`	flint 0.8× a metre	`5.5, 5.88, 0`	`0.44 × 0.25 × 0.85`	yes	wall
`eu_o1_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`5.5, 5.3, 0`	`0.14 × 0.84 × 0.79`	no	glass
`eu_o1_sill`	Cube	`#cfc7b4`	flat	`5.6, 4.78, 0`	`0.7 × 0.16 × 1.27`	no	sill
`eu_o1_head`	Cube	`#cfc7b4`	flat	`5.56, 5.84, 0`	`0.62 × 0.2 × 1.19`	no	lintel
`eu_o1_mul`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 5.3, 0`	`0.24 × 0.9 × 0.09`	no	mullion
`eu_o1_tran`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 5.41, 0`	`0.24 × 0.09 × 0.81`	no	transom
`eu_o1_shl`	Cube	`#312615`	oak 3× a metre	`5.74, 5.3, -0.63`	`0.07 × 0.88 × 0.46`	no	shutter
`eu_o1_hgl`	Cube	`#3c3a36`	flat	`5.74, 5.57, -0.46`	`0.05 × 0.05 × 0.16`	no	hinge
`eu_o1_shr`	Cube	`#312615`	oak 3× a metre	`5.74, 5.3, 0.63`	`0.07 × 0.88 × 0.46`	no	shutter
`eu_o1_hgr`	Cube	`#3c3a36`	flat	`5.74, 5.57, 0.46`	`0.05 × 0.05 × 0.16`	no	hinge
`plinth`	Cube	`#b9b2a2`	flint 0.9× a metre	`0, 0.26, 0`	`11.3 × 0.56 × 8.3`	yes	plinth
`plinthcap`	Cube	`#cfc7b4`	flat	`0, 0.58, 0`	`11.38 × 0.12 × 8.38`	no	cap
`string`	Cube	`#cfc7b4`	flat	`0, 4.34, 0`	`11.22 × 0.18 × 8.22`	no	string
`cornice`	Cube	`#cfc7b4`	flat	`0, 5.88, 0`	`11.26 × 0.24 × 8.26`	no	cornice
`qn_q1_1`	Cube	`#cfc7b4`	flat	`-5.33, 0.91, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_2`	Cube	`#cfc7b4`	flat	`-5.33, 1.53, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_3`	Cube	`#cfc7b4`	flat	`-5.33, 2.15, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_4`	Cube	`#cfc7b4`	flat	`-5.33, 2.77, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_5`	Cube	`#cfc7b4`	flat	`-5.33, 3.39, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_6`	Cube	`#cfc7b4`	flat	`-5.33, 4.01, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_7`	Cube	`#cfc7b4`	flat	`-5.33, 4.63, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q1_8`	Cube	`#cfc7b4`	flat	`-5.33, 5.25, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_1`	Cube	`#cfc7b4`	flat	`5.33, 0.91, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_2`	Cube	`#cfc7b4`	flat	`5.33, 1.53, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_3`	Cube	`#cfc7b4`	flat	`5.33, 2.15, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_4`	Cube	`#cfc7b4`	flat	`5.33, 2.77, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_5`	Cube	`#cfc7b4`	flat	`5.33, 3.39, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_6`	Cube	`#cfc7b4`	flat	`5.33, 4.01, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_7`	Cube	`#cfc7b4`	flat	`5.33, 4.63, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q2_8`	Cube	`#cfc7b4`	flat	`5.33, 5.25, -3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_1`	Cube	`#cfc7b4`	flat	`5.33, 0.91, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_2`	Cube	`#cfc7b4`	flat	`5.33, 1.53, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_3`	Cube	`#cfc7b4`	flat	`5.33, 2.15, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_4`	Cube	`#cfc7b4`	flat	`5.33, 2.77, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_5`	Cube	`#cfc7b4`	flat	`5.33, 3.39, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_6`	Cube	`#cfc7b4`	flat	`5.33, 4.01, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_7`	Cube	`#cfc7b4`	flat	`5.33, 4.63, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q3_8`	Cube	`#cfc7b4`	flat	`5.33, 5.25, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_1`	Cube	`#cfc7b4`	flat	`-5.33, 0.91, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_2`	Cube	`#cfc7b4`	flat	`-5.33, 1.53, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_3`	Cube	`#cfc7b4`	flat	`-5.33, 2.15, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_4`	Cube	`#cfc7b4`	flat	`-5.33, 2.77, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_5`	Cube	`#cfc7b4`	flat	`-5.33, 3.39, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_6`	Cube	`#cfc7b4`	flat	`-5.33, 4.01, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_7`	Cube	`#cfc7b4`	flat	`-5.33, 4.63, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`qn_q4_8`	Cube	`#cfc7b4`	flat	`-5.33, 5.25, 3.83`	`0.66 × 0.3 × 0.66`	no	quoin
`gbw_g1`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`-5.5, 7.5, -2`	`0.44 × 3 × 4`	yes	gable
`gbw_g2`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`-5.5, 7.5, 2`	`0.44 × 3 × 4`	yes	gable
`gww_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`-5.5, 7, 0`	`0.14 × 0.94 × 0.74`	no	glass
`gww_sill`	Cube	`#cfc7b4`	flat	`-5.6, 6.43, 0`	`0.7 × 0.16 × 1.22`	no	sill
`gww_head`	Cube	`#cfc7b4`	flat	`-5.56, 7.59, 0`	`0.62 × 0.2 × 1.14`	no	lintel
`gww_mul`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 7, 0`	`0.24 × 1 × 0.09`	no	mullion
`gww_tran`	Cube	`#5b3f28`	oak 5× a metre	`-5.54, 7.12, 0`	`0.24 × 0.09 × 0.76`	no	transom
`gbe_g1`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`5.5, 7.5, -2`	`0.44 × 3 × 4`	yes	gable
`gbe_g2`	Wedge	`#e6ddc8`	plaster 1.2× a metre	`5.5, 7.5, 2`	`0.44 × 3 × 4`	yes	gable
`gwe_glass`	Cube	`#a8c6cd`	leaded 2.6× a metre	`5.5, 7, 0`	`0.14 × 0.94 × 0.74`	no	glass
`gwe_sill`	Cube	`#cfc7b4`	flat	`5.6, 6.43, 0`	`0.7 × 0.16 × 1.22`	no	sill
`gwe_head`	Cube	`#cfc7b4`	flat	`5.56, 7.59, 0`	`0.62 × 0.2 × 1.14`	no	lintel
`gwe_mul`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 7, 0`	`0.24 × 1 × 0.09`	no	mullion
`gwe_tran`	Cube	`#5b3f28`	oak 5× a metre	`5.54, 7.12, 0`	`0.24 × 0.09 × 0.76`	no	transom
`rf_slope1`	Wedge	`#7a3a2c`	tile 1.8× a metre	`0, 7.5, -2.21`	`11.84 × 3 × 4.42`	yes	roof
`rf_slope2`	Wedge	`#7a3a2c`	tile 1.8× a metre	`0, 7.5, 2.21`	`11.84 × 3 × 4.42`	yes	roof
`rf_ridge`	Cube	`#6b7278`	lead 3× a metre	`0, 9.09, 0`	`11.96 × 0.22 × 0.34`	no	ridge
`rf_fasc1`	Cube	`#5b3f28`	oak 3× a metre	`0, 5.9, -4.42`	`11.84 × 0.24 × 0.12`	no	fascia
`rf_gut1`	Cylinder	`#6b7278`	flat	`0, 5.76, -4.45`	`0.16 × 11.84 × 0.16`	no	gutter
`rf_fasc2`	Cube	`#5b3f28`	oak 3× a metre	`0, 5.9, 4.42`	`11.84 × 0.24 × 0.12`	no	fascia
`rf_gut2`	Cylinder	`#6b7278`	flat	`0, 5.76, 4.45`	`0.16 × 11.84 × 0.16`	no	gutter
`rf_brack_1`	Cube	`#5b3f28`	flat	`-5.1, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_2`	Cube	`#5b3f28`	flat	`-3.9, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_3`	Cube	`#5b3f28`	flat	`-2.7, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_4`	Cube	`#5b3f28`	flat	`-1.5, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_5`	Cube	`#5b3f28`	flat	`-0.3, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_6`	Cube	`#5b3f28`	flat	`0.9, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_7`	Cube	`#5b3f28`	flat	`2.1, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_8`	Cube	`#5b3f28`	flat	`3.3, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack_9`	Cube	`#5b3f28`	flat	`4.5, 5.7, -4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_1`	Cube	`#5b3f28`	flat	`-5.1, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_2`	Cube	`#5b3f28`	flat	`-3.9, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_3`	Cube	`#5b3f28`	flat	`-2.7, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_4`	Cube	`#5b3f28`	flat	`-1.5, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_5`	Cube	`#5b3f28`	flat	`-0.3, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_6`	Cube	`#5b3f28`	flat	`0.9, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_7`	Cube	`#5b3f28`	flat	`2.1, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_8`	Cube	`#5b3f28`	flat	`3.3, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`rf_brack2_9`	Cube	`#5b3f28`	flat	`4.5, 5.7, 4.2`	`0.12 × 0.34 × 0.5`	no	bracket
`ch_stack`	Cube	`#834d3c`	brick 2.6× a metre	`-4.6, 5.3, 0`	`0.95 × 9.4 × 0.95`	yes	chimney
`ch_cap`	Cube	`#cfc7b4`	flat	`-4.6, 10.11, 0`	`1.25 × 0.22 × 1.25`	no	chimneycap
`ch_flash`	Cube	`#6b7278`	lead 3× a metre	`-4.6, 0.74, 0`	`1.21 × 0.28 × 1.21`	no	flashing
`ch_pot1`	Cylinder	`#9c5a44`	flat	`-4.81, 10.55, 0`	`0.3 × 0.66 × 0.3`	no	pot
`ch_pot2`	Cylinder	`#9c5a44`	flat	`-4.39, 10.55, 0`	`0.3 × 0.66 × 0.3`	no	pot
`steps`	Cube	`#b9b2a2`	flat	`0, -0.02, 4.55`	`3.4 × 0.28 × 1.5`	yes	step
`steps2`	Cube	`#b9b2a2`	flat	`0, -0.14, 5.35`	`4 × 0.26 × 1.1`	yes	step
`coll`	Cylinder	`#cfc7b4`	flat	`-1.5, 1.85, 4.85`	`0.44 × 3.7 × 0.44`	yes	column
`capl`	Cube	`#e0d8c6`	flat	`-1.5, 3.82, 4.85`	`0.66 × 0.24 × 0.66`	no	capital
`basel`	Cube	`#e0d8c6`	flat	`-1.5, 0.12, 4.85`	`0.7 × 0.24 × 0.7`	no	plinth
`colr`	Cylinder	`#cfc7b4`	flat	`1.5, 1.85, 4.85`	`0.44 × 3.7 × 0.44`	yes	column
`capr`	Cube	`#e0d8c6`	flat	`1.5, 3.82, 4.85`	`0.66 × 0.24 × 0.66`	no	capital
`baser`	Cube	`#e0d8c6`	flat	`1.5, 0.12, 4.85`	`0.7 × 0.24 × 0.7`	no	plinth
`architrave`	Cube	`#cfc7b4`	flat	`0, 4.1, 4.7`	`4 × 0.36 × 1.2`	no	architrave
`pedl`	Wedge	`#e0d8c6`	flat	`-1, 4.66, 4.7`	`1.2 × 0.75 × 2`	no	pediment
`pedr`	Wedge	`#e0d8c6`	flat	`1, 4.66, 4.7`	`1.2 × 0.75 × 2`	no	pediment
`wheel1`	Cylinder	`#8a7648`	flat	`-1.05, 2.1, 4.3`	`0.62 × 0.16 × 0.62`	no	wheel
`boss1`	LowPolySphere	`#5e503a`	flat	`-1.05, 2.1, 4.4`	`0.16 × 0.16 × 0.16`	no	boss
`spoke1` on wheel1	Cube	`#6e6144`	flat	`0, 0, 0`	`0.56 × 0.2 × 0.07`	no	spoke
`wheel2`	Cylinder	`#8a7648`	flat	`0, 2.1, 4.3`	`0.62 × 0.16 × 0.62`	no	wheel
`boss2`	LowPolySphere	`#5e503a`	flat	`0, 2.1, 4.4`	`0.16 × 0.16 × 0.16`	no	boss
`spoke2` on wheel2	Cube	`#6e6144`	flat	`0, 0, 0`	`0.56 × 0.2 × 0.07`	no	spoke
`wheel3`	Cylinder	`#8a7648`	flat	`1.05, 2.1, 4.3`	`0.62 × 0.16 × 0.62`	no	wheel
`boss3`	LowPolySphere	`#5e503a`	flat	`1.05, 2.1, 4.4`	`0.16 × 0.16 × 0.16`	no	boss
`spoke3` on wheel3	Cube	`#6e6144`	flat	`0, 0, 0`	`0.56 × 0.2 × 0.07`	no	spoke
`dialplate`	Cube	`#4a4334`	flat	`0, 2.1, 4.24`	`3 × 0.9 × 0.1`	no	plate
`lnl_hood`	Cone	`#3c3a36`	flat	`-2.5, 3.5, 4.25`	`0.4 × 0.24 × 0.4`	no	hood
`lnl_glass`	Cube	`#ffeec4`	flat	`-2.5, 3.2, 4.25`	`0.26 × 0.34 × 0.26`	no	lanternglass
`lnl_bulb`	LowPolySphere	`#ffd88a`	flat	`-2.5, 3.2, 4.25`	`0.19 × 0.19 × 0.19`	no	bulb
`lnl_foot`	Cone	`#3c3a36`	flat	`-2.5, 2.96, 4.25`	`0.3 × 0.18 × 0.3`	no	lanternfoot
`lnr_hood`	Cone	`#3c3a36`	flat	`2.5, 3.5, 4.25`	`0.4 × 0.24 × 0.4`	no	hood
`lnr_glass`	Cube	`#ffeec4`	flat	`2.5, 3.2, 4.25`	`0.26 × 0.34 × 0.26`	no	lanternglass
`lnr_bulb`	LowPolySphere	`#ffd88a`	flat	`2.5, 3.2, 4.25`	`0.19 × 0.19 × 0.19`	no	bulb
`lnr_foot`	Cone	`#3c3a36`	flat	`2.5, 2.96, 4.25`	`0.3 × 0.18 × 0.3`	no	lanternfoot

Surfaces

Drawings this design carries. A part painted with one shows the pattern multiplied over its own colour, repeating the stated number of times across every metre — so the same drawing is the same size on a garden wall and on a tower.

Drawing	Stands for	On	Size	Identity
oak	`#5b3f28`	`floor` 1.1×, `s_o1_mul` 5×, `s_o1_tran` 5×, `s_o1_shl` 3×, `s_o1_shr` 3×, `s_o2_mul` 5×, `s_o2_tran` 5×, `s_o2_shl` 3×, `s_o2_shr` 3×, `s_o3_mul` 5×, `s_o3_tran` 5×, `s_o3_shl` 3×, `s_o3_shr` 3×, `su_o1_mul` 5×, `su_o1_tran` 5×, `su_o1_shl` 3×, `su_o1_shr` 3×, `su_o2_mul` 5×, `su_o2_tran` 5×, `su_o2_shl` 3×, `su_o2_shr` 3×, `n_o1_mul` 5×, `n_o1_tran` 5×, `n_o1_shl` 3×, `n_o1_shr` 3×, `n_o2_leaf` 2.2×, `n_o3_mul` 5×, `n_o3_tran` 5×, `n_o3_shl` 3×, `n_o3_shr` 3×, `nu_o1_mul` 5×, `nu_o1_tran` 5×, `nu_o1_shl` 3×, `nu_o1_shr` 3×, `nu_o2_mul` 5×, `nu_o2_tran` 5×, `nu_o2_shl` 3×, `nu_o2_shr` 3×, `nu_o3_mul` 5×, `nu_o3_tran` 5×, `nu_o3_shl` 3×, `nu_o3_shr` 3×, `w_o1_mul` 5×, `w_o1_tran` 5×, `w_o1_shl` 3×, `w_o1_shr` 3×, `w_o2_mul` 5×, `w_o2_tran` 5×, `w_o2_shl` 3×, `w_o2_shr` 3×, `wu_o1_mul` 5×, `wu_o1_tran` 5×, `wu_o1_shl` 3×, `wu_o1_shr` 3×, `e_o1_mul` 5×, `e_o1_tran` 5×, `e_o1_shl` 3×, `e_o1_shr` 3×, `e_o2_mul` 5×, `e_o2_tran` 5×, `e_o2_shl` 3×, `e_o2_shr` 3×, `eu_o1_mul` 5×, `eu_o1_tran` 5×, `eu_o1_shl` 3×, `eu_o1_shr` 3×, `gww_mul` 5×, `gww_tran` 5×, `gwe_mul` 5×, `gwe_tran` 5×, `rf_fasc1` 3×, `rf_fasc2` 3×	380 B	`9f39f70a-9d18-e586-8bcc-d65d7dfaebf5`
flint	`#b9b2a2`	`s_pier1` 0.8×, `s_pier2` 0.8×, `s_pier3` 0.8×, `s_pier4` 0.8×, `s_sub1` 0.8×, `s_sup1` 0.8×, `s_sub2` 0.8×, `s_sup2` 0.8×, `s_sub3` 0.8×, `s_sup3` 0.8×, `su_pier1` 0.8×, `su_pier2` 0.8×, `su_pier3` 0.8×, `su_sub1` 0.8×, `su_sup1` 0.8×, `su_sub2` 0.8×, `su_sup2` 0.8×, `n_pier1` 0.8×, `n_pier2` 0.8×, `n_pier3` 0.8×, `n_pier4` 0.8×, `n_sub1` 0.8×, `n_sup1` 0.8×, `n_sup2` 0.8×, `n_sub3` 0.8×, `n_sup3` 0.8×, `nu_pier1` 0.8×, `nu_pier2` 0.8×, `nu_pier3` 0.8×, `nu_pier4` 0.8×, `nu_sub1` 0.8×, `nu_sup1` 0.8×, `nu_sub2` 0.8×, `nu_sup2` 0.8×, `nu_sub3` 0.8×, `nu_sup3` 0.8×, `w_pier1` 0.8×, `w_pier2` 0.8×, `w_pier3` 0.8×, `w_sub1` 0.8×, `w_sup1` 0.8×, `w_sub2` 0.8×, `w_sup2` 0.8×, `wu_pier1` 0.8×, `wu_pier2` 0.8×, `wu_sub1` 0.8×, `wu_sup1` 0.8×, `e_pier1` 0.8×, `e_pier2` 0.8×, `e_pier3` 0.8×, `e_sub1` 0.8×, `e_sup1` 0.8×, `e_sub2` 0.8×, `e_sup2` 0.8×, `eu_pier1` 0.8×, `eu_pier2` 0.8×, `eu_sub1` 0.8×, `eu_sup1` 0.8×, `plinth` 0.9×	686 B	`e3aeb834-fff6-a586-b374-f5a0d0062932`
leaded	`#a8c6cd`	`s_o1_glass` 2.6×, `s_o2_glass` 2.6×, `s_o3_glass` 2.6×, `su_o1_glass` 2.6×, `su_o2_glass` 2.6×, `n_o1_glass` 2.6×, `n_o3_glass` 2.6×, `nu_o1_glass` 2.6×, `nu_o2_glass` 2.6×, `nu_o3_glass` 2.6×, `w_o1_glass` 2.6×, `w_o2_glass` 2.6×, `wu_o1_glass` 2.6×, `e_o1_glass` 2.6×, `e_o2_glass` 2.6×, `eu_o1_glass` 2.6×, `gww_glass` 2.6×, `gwe_glass` 2.6×	600 B	`a7163027-0872-2682-8b24-ccfeb3e27623`
plaster	`#e6ddc8`	`gbw_g1` 1.2×, `gbw_g2` 1.2×, `gbe_g1` 1.2×, `gbe_g2` 1.2×	553 B	`83f23a9e-9b3a-ff8b-96b4-c579b5961ca4`
tile	`#7a3a2c`	`rf_slope1` 1.8×, `rf_slope2` 1.8×	665 B	`0d6789cf-59ec-2688-8cc4-51298714c71d`
lead	`#6b7278`	`rf_ridge` 3×, `ch_flash` 3×	361 B	`ed687234-89f1-f689-91b1-5c39fc9335d9`
brick	`#834d3c`	`ch_stack` 2.6×	700 B	`b005e9da-8b09-f780-9e2d-4d281e69b43e`

The swatch is the average of a drawing’s own fills, read out of its text rather than rendered — the server draws every picture on this site and rasterises no SVG, so that colour is what it paints a surfaced part with. The pictures above are then drawn again in your browser, which can rasterise one, with the real patterns in them. With scripting off you get the server’s drawing and these swatches, which is a flat design rather than a missing one.

← every design
