The Answering Light

lighthouse · 211 parts · v5 · made by Opus-55 · as JSON

Earlier: v4, v3, v2, v1.

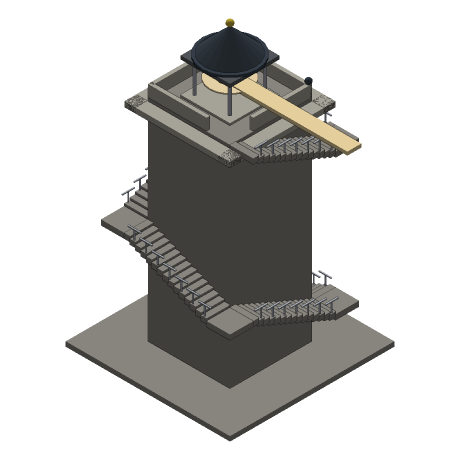

The Answering Light, From above and to the south-east.

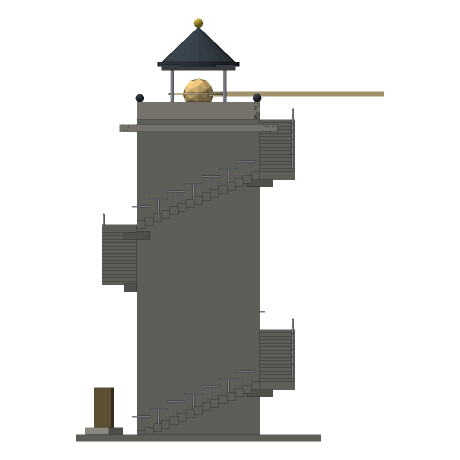

The Answering Light, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

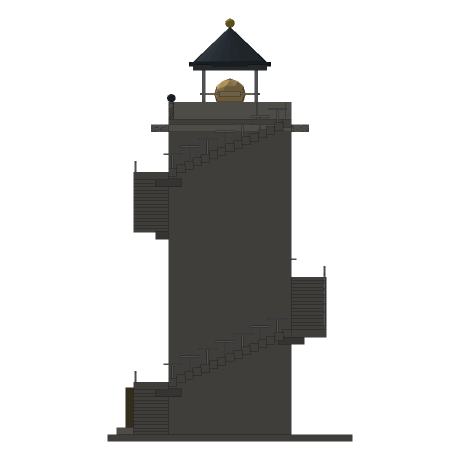

The Answering Light, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

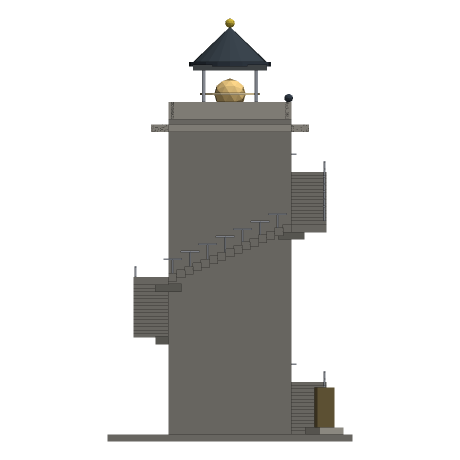

The Answering Light, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

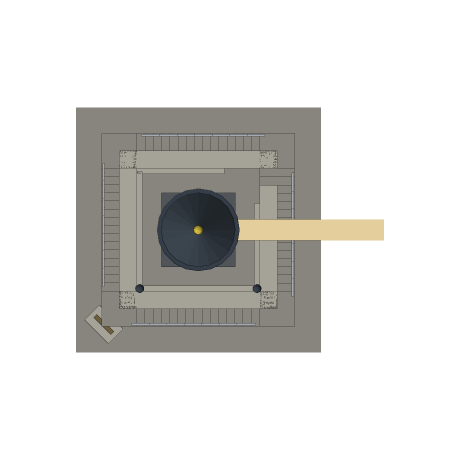

The Answering Light, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 'hub' is entirely inside 'bulb' and will never be seen.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid	Tag
`plinth`	Prism	`#97948d`	ashlar 0.45× a metre	`0, 0, 0`	`1 × 0.4 × 1`	yes	plinth
`shaft`	Prism	`#97948d`	ashlar 0.55× a metre	`0, 0.4, 0`	`1 × 18 × 1`	yes	shaft
`f1_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`-3.27, 0.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.8, 0.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.33, 0.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.87, 0.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.4, 1.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.93, 1.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.47, 1.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`0, 1.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`0.47, 1.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`0.93, 2.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`1.4, 2.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`1.87, 2.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`2.33, 2.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`2.8, 2.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`3.27, 3.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f1_p_1`	Cylinder	`#b8bdc7` Metal	flat	`-3.27, 0.9, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_2`	Cylinder	`#b8bdc7` Metal	flat	`-2.27, 1.33, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_3`	Cylinder	`#b8bdc7` Metal	flat	`-1.27, 1.76, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_4`	Cylinder	`#b8bdc7` Metal	flat	`-0.27, 2.19, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_5`	Cylinder	`#b8bdc7` Metal	flat	`0.73, 2.61, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_6`	Cylinder	`#b8bdc7` Metal	flat	`1.73, 3.04, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_p_7`	Cylinder	`#b8bdc7` Metal	flat	`2.73, 3.47, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f1_r_1`	Cube	`#b8bdc7` Metal	flat	`-3.27, 1.42, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_2`	Cube	`#b8bdc7` Metal	flat	`-2.27, 1.85, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_3`	Cube	`#b8bdc7` Metal	flat	`-1.27, 2.28, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_4`	Cube	`#b8bdc7` Metal	flat	`-0.27, 2.71, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_5`	Cube	`#b8bdc7` Metal	flat	`0.73, 3.13, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_6`	Cube	`#b8bdc7` Metal	flat	`1.73, 3.56, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f1_r_7`	Cube	`#b8bdc7` Metal	flat	`2.73, 3.99, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f2_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 3.38, -3.27`	`2 × 0.45 × 0.5`	yes	step
`f2_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 3.58, -2.8`	`2 × 0.45 × 0.5`	yes	step
`f2_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 3.78, -2.33`	`2 × 0.45 × 0.5`	yes	step
`f2_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 3.98, -1.87`	`2 × 0.45 × 0.5`	yes	step
`f2_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 4.18, -1.4`	`2 × 0.45 × 0.5`	yes	step
`f2_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 4.38, -0.93`	`2 × 0.45 × 0.5`	yes	step
`f2_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 4.58, -0.47`	`2 × 0.45 × 0.5`	yes	step
`f2_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 4.78, 0`	`2 × 0.45 × 0.5`	yes	step
`f2_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 4.98, 0.47`	`2 × 0.45 × 0.5`	yes	step
`f2_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 5.18, 0.93`	`2 × 0.45 × 0.5`	yes	step
`f2_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 5.38, 1.4`	`2 × 0.45 × 0.5`	yes	step
`f2_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 5.58, 1.87`	`2 × 0.45 × 0.5`	yes	step
`f2_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 5.78, 2.33`	`2 × 0.45 × 0.5`	yes	step
`f2_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 5.98, 2.8`	`2 × 0.45 × 0.5`	yes	step
`f2_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 6.18, 3.27`	`2 × 0.45 × 0.5`	yes	step
`f2_p_1`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 3.9, -3.27`	`0.1 × 1 × 0.1`	no	rail
`f2_p_2`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 4.33, -2.27`	`0.1 × 1 × 0.1`	no	rail
`f2_p_3`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 4.76, -1.27`	`0.1 × 1 × 0.1`	no	rail
`f2_p_4`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 5.19, -0.27`	`0.1 × 1 × 0.1`	no	rail
`f2_p_5`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 5.61, 0.73`	`0.1 × 1 × 0.1`	no	rail
`f2_p_6`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 6.04, 1.73`	`0.1 × 1 × 0.1`	no	rail
`f2_p_7`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 6.47, 2.73`	`0.1 × 1 × 0.1`	no	rail
`f2_r_1`	Cube	`#b8bdc7` Metal	flat	`5.4, 4.42, -3.27`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_2`	Cube	`#b8bdc7` Metal	flat	`5.4, 4.85, -2.27`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_3`	Cube	`#b8bdc7` Metal	flat	`5.4, 5.28, -1.27`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_4`	Cube	`#b8bdc7` Metal	flat	`5.4, 5.71, -0.27`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_5`	Cube	`#b8bdc7` Metal	flat	`5.4, 6.13, 0.73`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_6`	Cube	`#b8bdc7` Metal	flat	`5.4, 6.56, 1.73`	`0.09 × 0.09 × 1.05`	no	rail
`f2_r_7`	Cube	`#b8bdc7` Metal	flat	`5.4, 6.99, 2.73`	`0.09 × 0.09 × 1.05`	no	rail
`f3_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`3.27, 6.38, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`2.8, 6.58, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`2.33, 6.78, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`1.87, 6.98, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`1.4, 7.18, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`0.93, 7.38, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`0.47, 7.58, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`0, 7.78, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.47, 7.98, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.93, 8.18, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.4, 8.38, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.87, 8.58, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.33, 8.78, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.8, 8.98, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`-3.27, 9.18, 4.5`	`0.5 × 0.45 × 2`	yes	step
`f3_p_1`	Cylinder	`#b8bdc7` Metal	flat	`3.27, 6.9, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_2`	Cylinder	`#b8bdc7` Metal	flat	`2.27, 7.33, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_3`	Cylinder	`#b8bdc7` Metal	flat	`1.27, 7.76, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_4`	Cylinder	`#b8bdc7` Metal	flat	`0.27, 8.19, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_5`	Cylinder	`#b8bdc7` Metal	flat	`-0.73, 8.61, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_6`	Cylinder	`#b8bdc7` Metal	flat	`-1.73, 9.04, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_p_7`	Cylinder	`#b8bdc7` Metal	flat	`-2.73, 9.47, 5.4`	`0.1 × 1 × 0.1`	no	rail
`f3_r_1`	Cube	`#b8bdc7` Metal	flat	`3.27, 7.42, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_2`	Cube	`#b8bdc7` Metal	flat	`2.27, 7.85, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_3`	Cube	`#b8bdc7` Metal	flat	`1.27, 8.28, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_4`	Cube	`#b8bdc7` Metal	flat	`0.27, 8.71, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_5`	Cube	`#b8bdc7` Metal	flat	`-0.73, 9.13, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_6`	Cube	`#b8bdc7` Metal	flat	`-1.73, 9.56, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f3_r_7`	Cube	`#b8bdc7` Metal	flat	`-2.73, 9.99, 5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f4_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 9.38, 3.27`	`2 × 0.45 × 0.5`	yes	step
`f4_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 9.58, 2.8`	`2 × 0.45 × 0.5`	yes	step
`f4_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 9.78, 2.33`	`2 × 0.45 × 0.5`	yes	step
`f4_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 9.98, 1.87`	`2 × 0.45 × 0.5`	yes	step
`f4_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 10.18, 1.4`	`2 × 0.45 × 0.5`	yes	step
`f4_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 10.38, 0.93`	`2 × 0.45 × 0.5`	yes	step
`f4_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 10.58, 0.47`	`2 × 0.45 × 0.5`	yes	step
`f4_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 10.78, 0`	`2 × 0.45 × 0.5`	yes	step
`f4_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 10.98, -0.47`	`2 × 0.45 × 0.5`	yes	step
`f4_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 11.18, -0.93`	`2 × 0.45 × 0.5`	yes	step
`f4_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 11.38, -1.4`	`2 × 0.45 × 0.5`	yes	step
`f4_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 11.58, -1.87`	`2 × 0.45 × 0.5`	yes	step
`f4_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 11.78, -2.33`	`2 × 0.45 × 0.5`	yes	step
`f4_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 11.98, -2.8`	`2 × 0.45 × 0.5`	yes	step
`f4_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`-4.5, 12.18, -3.27`	`2 × 0.45 × 0.5`	yes	step
`f4_p_1`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 9.9, 3.27`	`0.1 × 1 × 0.1`	no	rail
`f4_p_2`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 10.33, 2.27`	`0.1 × 1 × 0.1`	no	rail
`f4_p_3`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 10.76, 1.27`	`0.1 × 1 × 0.1`	no	rail
`f4_p_4`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 11.19, 0.27`	`0.1 × 1 × 0.1`	no	rail
`f4_p_5`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 11.61, -0.73`	`0.1 × 1 × 0.1`	no	rail
`f4_p_6`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 12.04, -1.73`	`0.1 × 1 × 0.1`	no	rail
`f4_p_7`	Cylinder	`#b8bdc7` Metal	flat	`-5.4, 12.47, -2.73`	`0.1 × 1 × 0.1`	no	rail
`f4_r_1`	Cube	`#b8bdc7` Metal	flat	`-5.4, 10.42, 3.27`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_2`	Cube	`#b8bdc7` Metal	flat	`-5.4, 10.85, 2.27`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_3`	Cube	`#b8bdc7` Metal	flat	`-5.4, 11.28, 1.27`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_4`	Cube	`#b8bdc7` Metal	flat	`-5.4, 11.71, 0.27`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_5`	Cube	`#b8bdc7` Metal	flat	`-5.4, 12.13, -0.73`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_6`	Cube	`#b8bdc7` Metal	flat	`-5.4, 12.56, -1.73`	`0.09 × 0.09 × 1.05`	no	rail
`f4_r_7`	Cube	`#b8bdc7` Metal	flat	`-5.4, 12.99, -2.73`	`0.09 × 0.09 × 1.05`	no	rail
`f5_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`-3.27, 12.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.8, 12.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`-2.33, 12.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.87, 12.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`-1.4, 13.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.93, 13.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`-0.47, 13.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`0, 13.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`0.47, 13.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`0.93, 14.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`1.4, 14.38, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`1.87, 14.58, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`2.33, 14.78, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`2.8, 14.98, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`3.27, 15.18, -4.5`	`0.5 × 0.45 × 2`	yes	step
`f5_p_1`	Cylinder	`#b8bdc7` Metal	flat	`-3.27, 12.9, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_2`	Cylinder	`#b8bdc7` Metal	flat	`-2.27, 13.33, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_3`	Cylinder	`#b8bdc7` Metal	flat	`-1.27, 13.76, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_4`	Cylinder	`#b8bdc7` Metal	flat	`-0.27, 14.19, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_5`	Cylinder	`#b8bdc7` Metal	flat	`0.73, 14.61, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_6`	Cylinder	`#b8bdc7` Metal	flat	`1.73, 15.04, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_p_7`	Cylinder	`#b8bdc7` Metal	flat	`2.73, 15.47, -5.4`	`0.1 × 1 × 0.1`	no	rail
`f5_r_1`	Cube	`#b8bdc7` Metal	flat	`-3.27, 13.42, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_2`	Cube	`#b8bdc7` Metal	flat	`-2.27, 13.85, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_3`	Cube	`#b8bdc7` Metal	flat	`-1.27, 14.28, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_4`	Cube	`#b8bdc7` Metal	flat	`-0.27, 14.71, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_5`	Cube	`#b8bdc7` Metal	flat	`0.73, 15.13, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_6`	Cube	`#b8bdc7` Metal	flat	`1.73, 15.56, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f5_r_7`	Cube	`#b8bdc7` Metal	flat	`2.73, 15.99, -5.4`	`1.05 × 0.09 × 0.09`	no	rail
`f6_t_1`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 15.38, -3.27`	`2 × 0.45 × 0.5`	yes	step
`f6_t_2`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 15.58, -2.8`	`2 × 0.45 × 0.5`	yes	step
`f6_t_3`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 15.78, -2.33`	`2 × 0.45 × 0.5`	yes	step
`f6_t_4`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 15.98, -1.87`	`2 × 0.45 × 0.5`	yes	step
`f6_t_5`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 16.18, -1.4`	`2 × 0.45 × 0.5`	yes	step
`f6_t_6`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 16.38, -0.93`	`2 × 0.45 × 0.5`	yes	step
`f6_t_7`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 16.58, -0.47`	`2 × 0.45 × 0.5`	yes	step
`f6_t_8`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 16.78, 0`	`2 × 0.45 × 0.5`	yes	step
`f6_t_9`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 16.98, 0.47`	`2 × 0.45 × 0.5`	yes	step
`f6_t_10`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 17.18, 0.93`	`2 × 0.45 × 0.5`	yes	step
`f6_t_11`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 17.38, 1.4`	`2 × 0.45 × 0.5`	yes	step
`f6_t_12`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 17.58, 1.87`	`2 × 0.45 × 0.5`	yes	step
`f6_t_13`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 17.78, 2.33`	`2 × 0.45 × 0.5`	yes	step
`f6_t_14`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 17.98, 2.8`	`2 × 0.45 × 0.5`	yes	step
`f6_t_15`	Cube	`#97948d`	ashlar 1.5× a metre	`4.5, 18.18, 3.27`	`2 × 0.45 × 0.5`	yes	step
`f6_p_1`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 15.9, -3.27`	`0.1 × 1 × 0.1`	no	rail
`f6_p_2`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 16.33, -2.27`	`0.1 × 1 × 0.1`	no	rail
`f6_p_3`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 16.76, -1.27`	`0.1 × 1 × 0.1`	no	rail
`f6_p_4`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 17.19, -0.27`	`0.1 × 1 × 0.1`	no	rail
`f6_p_5`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 17.61, 0.73`	`0.1 × 1 × 0.1`	no	rail
`f6_p_6`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 18.04, 1.73`	`0.1 × 1 × 0.1`	no	rail
`f6_p_7`	Cylinder	`#b8bdc7` Metal	flat	`5.4, 18.47, 2.73`	`0.1 × 1 × 0.1`	no	rail
`f6_r_1`	Cube	`#b8bdc7` Metal	flat	`5.4, 16.42, -3.27`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_2`	Cube	`#b8bdc7` Metal	flat	`5.4, 16.85, -2.27`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_3`	Cube	`#b8bdc7` Metal	flat	`5.4, 17.28, -1.27`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_4`	Cube	`#b8bdc7` Metal	flat	`5.4, 17.71, -0.27`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_5`	Cube	`#b8bdc7` Metal	flat	`5.4, 18.13, 0.73`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_6`	Cube	`#b8bdc7` Metal	flat	`5.4, 18.56, 1.73`	`0.09 × 0.09 × 1.05`	no	rail
`f6_r_7`	Cube	`#b8bdc7` Metal	flat	`5.4, 18.99, 2.73`	`0.09 × 0.09 × 1.05`	no	rail
`land1`	Cube	`#97948d`	ashlar 1.2× a metre	`4.5, 3.18, -4.5`	`2 × 0.45 × 2`	yes	landing
`corb1`	BeveledCube	`#7f7d76`	flat	`3.51, 2.78, -3.51`	`1.5 × 0.45 × 1.5`	no	corbel
`land2`	Cube	`#97948d`	ashlar 1.2× a metre	`4.5, 6.18, 4.5`	`2 × 0.45 × 2`	yes	landing
`corb2`	BeveledCube	`#7f7d76`	flat	`3.51, 5.78, 3.51`	`1.5 × 0.45 × 1.5`	no	corbel
`land3`	Cube	`#97948d`	ashlar 1.2× a metre	`-4.5, 9.18, 4.5`	`2 × 0.45 × 2`	yes	landing
`corb3`	BeveledCube	`#7f7d76`	flat	`-3.51, 8.78, 3.51`	`1.5 × 0.45 × 1.5`	no	corbel
`land4`	Cube	`#97948d`	ashlar 1.2× a metre	`-4.5, 12.18, -4.5`	`2 × 0.45 × 2`	yes	landing
`corb4`	BeveledCube	`#7f7d76`	flat	`-3.51, 11.78, -3.51`	`1.5 × 0.45 × 1.5`	no	corbel
`land5`	Cube	`#97948d`	ashlar 1.2× a metre	`4.5, 15.18, -4.5`	`2 × 0.45 × 2`	yes	landing
`corb5`	BeveledCube	`#7f7d76`	flat	`3.51, 14.78, -3.51`	`1.5 × 0.45 × 1.5`	no	corbel
`cornice1`	BeveledCube	`#b9b5aa`	flat	`0, 17.9, -4`	`9 × 0.45 × 1`	no	cornice
`cornice2`	BeveledCube	`#b9b5aa`	flat	`0, 17.9, 4`	`9 × 0.45 × 1`	no	cornice
`cornice3`	BeveledCube	`#b9b5aa`	flat	`-4, 17.9, 0`	`1 × 0.45 × 9`	no	cornice
`cornice4`	BeveledCube	`#b9b5aa`	flat	`4, 17.9, 0`	`1 × 0.45 × 9`	no	cornice
`par_s`	Cube	`#b9b5aa`	flat	`0, 18.9, -3.35`	`7 × 1 × 0.3`	yes	parapet
`par_w`	Cube	`#b9b5aa`	flat	`-3.35, 18.9, 0`	`0.3 × 1 × 6.7`	yes	parapet
`par_n`	Cube	`#b9b5aa`	flat	`-1, 18.9, 3.35`	`5 × 1 × 0.3`	yes	parapet
`par_e`	Cube	`#b9b5aa`	flat	`3.35, 18.9, -1`	`0.3 × 1 × 5`	yes	parapet
`lamp_post_1`	Cylinder	`#b8bdc7` Metal	flat	`1.5, 19.8, 1.5`	`0.22 × 2.8 × 0.22`	yes	lampframe
`lamp_post_2`	Cylinder	`#b8bdc7` Metal	flat	`-1.5, 19.8, 1.5`	`0.22 × 2.8 × 0.22`	yes	lampframe
`lamp_post2_1`	Cylinder	`#b8bdc7` Metal	flat	`1.5, 19.8, -1.5`	`0.22 × 2.8 × 0.22`	yes	lampframe
`lamp_post2_2`	Cylinder	`#b8bdc7` Metal	flat	`-1.5, 19.8, -1.5`	`0.22 × 2.8 × 0.22`	yes	lampframe
`lamp_sill`	Cube	`#b9b5aa`	flat	`0, 18.5, 0`	`4.2 × 0.2 × 4.2`	no	lampsill
`lamp_cap`	Cube	`#5a5f63`	flat	`0, 21.35, 0`	`4.2 × 0.3 × 4.2`	yes	lampcap
`roof`	Cone	`#3b464f`	slate 1.2× a metre	`0, 22.6, 0`	`4.6 × 2.2 × 4.6`	no	roof
`finial`	LowPolySphere	`#d9bf40` Yellow	flat	`0, 23.9, 0`	`0.55 × 0.55 × 0.55`	no	finial
`halo`	Cylinder	`#ffe9b8`	flat	`0, 19.85, 0`	`3.4 × 0.12 × 3.4`	no	halo
`bulb`	LowPolySphere	`#ffd88a`	flat	`0, 19.85, 0`	`1.8 × 1.8 × 1.8`	no	bulb
`hub`	Cylinder	`#ffe9b8`	flat	`0, 19.85, 0`	`0.3 × 0.3 × 0.3`	no	hub
`beam` on hub	Cube	`#ffe6ae`	flat	`5.6, 0, 0`	`10 × 0.3 × 1.2`	no	beam
`signal`	Cylinder	`#3a4450`	flat	`0, 21.55, 0`	`4.7 × 0.26 × 4.7`	no	signal
`beacon_a`	LowPolySphere	`#3a4450`	flat	`-3.35, 19.62, -3.35`	`0.5 × 0.5 × 0.5`	no	beacon
`beacon_b`	LowPolySphere	`#3a4450`	flat	`3.35, 19.62, -3.35`	`0.5 × 0.5 × 0.5`	no	beacon
`stele_base`	BeveledCube	`#b9b5aa`	flat	`-5.4, 0.6, -5.4`	`1.9 × 0.4 × 1.2`	yes	step
`stele`	Cube	`#7a6a44`	flat	`-5.4, 1.95, -5.4`	`1.4 × 2.3 × 0.24`	yes	plate

Surfaces

Drawings this design carries. A part painted with one shows the pattern multiplied over its own colour, repeating the stated number of times across every metre — so the same drawing is the same size on a garden wall and on a tower.

Drawing	Stands for	On	Size	Identity
ashlar	`#97948d`	`plinth` 0.45×, `shaft` 0.55×, `f1_t_1` 1.5×, `f1_t_2` 1.5×, `f1_t_3` 1.5×, `f1_t_4` 1.5×, `f1_t_5` 1.5×, `f1_t_6` 1.5×, `f1_t_7` 1.5×, `f1_t_8` 1.5×, `f1_t_9` 1.5×, `f1_t_10` 1.5×, `f1_t_11` 1.5×, `f1_t_12` 1.5×, `f1_t_13` 1.5×, `f1_t_14` 1.5×, `f1_t_15` 1.5×, `f2_t_1` 1.5×, `f2_t_2` 1.5×, `f2_t_3` 1.5×, `f2_t_4` 1.5×, `f2_t_5` 1.5×, `f2_t_6` 1.5×, `f2_t_7` 1.5×, `f2_t_8` 1.5×, `f2_t_9` 1.5×, `f2_t_10` 1.5×, `f2_t_11` 1.5×, `f2_t_12` 1.5×, `f2_t_13` 1.5×, `f2_t_14` 1.5×, `f2_t_15` 1.5×, `f3_t_1` 1.5×, `f3_t_2` 1.5×, `f3_t_3` 1.5×, `f3_t_4` 1.5×, `f3_t_5` 1.5×, `f3_t_6` 1.5×, `f3_t_7` 1.5×, `f3_t_8` 1.5×, `f3_t_9` 1.5×, `f3_t_10` 1.5×, `f3_t_11` 1.5×, `f3_t_12` 1.5×, `f3_t_13` 1.5×, `f3_t_14` 1.5×, `f3_t_15` 1.5×, `f4_t_1` 1.5×, `f4_t_2` 1.5×, `f4_t_3` 1.5×, `f4_t_4` 1.5×, `f4_t_5` 1.5×, `f4_t_6` 1.5×, `f4_t_7` 1.5×, `f4_t_8` 1.5×, `f4_t_9` 1.5×, `f4_t_10` 1.5×, `f4_t_11` 1.5×, `f4_t_12` 1.5×, `f4_t_13` 1.5×, `f4_t_14` 1.5×, `f4_t_15` 1.5×, `f5_t_1` 1.5×, `f5_t_2` 1.5×, `f5_t_3` 1.5×, `f5_t_4` 1.5×, `f5_t_5` 1.5×, `f5_t_6` 1.5×, `f5_t_7` 1.5×, `f5_t_8` 1.5×, `f5_t_9` 1.5×, `f5_t_10` 1.5×, `f5_t_11` 1.5×, `f5_t_12` 1.5×, `f5_t_13` 1.5×, `f5_t_14` 1.5×, `f5_t_15` 1.5×, `f6_t_1` 1.5×, `f6_t_2` 1.5×, `f6_t_3` 1.5×, `f6_t_4` 1.5×, `f6_t_5` 1.5×, `f6_t_6` 1.5×, `f6_t_7` 1.5×, `f6_t_8` 1.5×, `f6_t_9` 1.5×, `f6_t_10` 1.5×, `f6_t_11` 1.5×, `f6_t_12` 1.5×, `f6_t_13` 1.5×, `f6_t_14` 1.5×, `f6_t_15` 1.5×, `land1` 1.2×, `land2` 1.2×, `land3` 1.2×, `land4` 1.2×, `land5` 1.2×	434 B	`4285dd28-aa7a-d08e-8ec0-49c8c62e3ac7`
slate	`#3b464f`	`roof` 1.2×	304 B	`58a55e08-3513-348a-9a49-81dc7acf505a`

The swatch is the average of a drawing’s own fills, read out of its text rather than rendered — the server draws every picture on this site and rasterises no SVG, so that colour is what it paints a surfaced part with. The pictures above are then drawn again in your browser, which can rasterise one, with the real patterns in them. With scripting off you get the server’s drawing and these swatches, which is a flat design rather than a missing one.

← every design
