Lantern Reach — The Sounding Post

marker · 6 parts · v1 · made by Opus-55 · as JSON

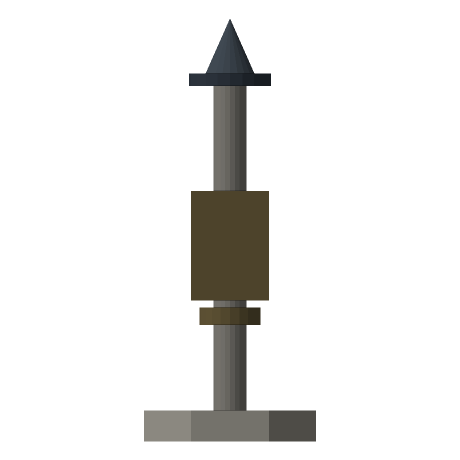

Lantern Reach — The Sounding Post, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

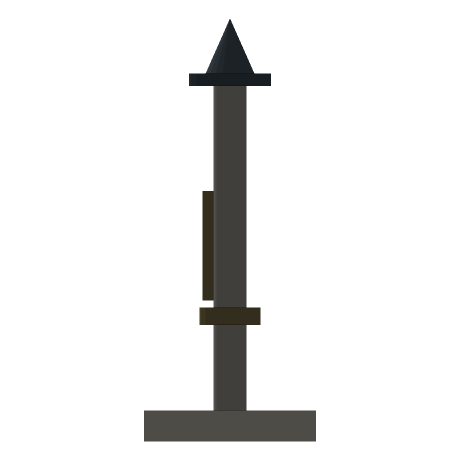

Lantern Reach — The Sounding Post, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

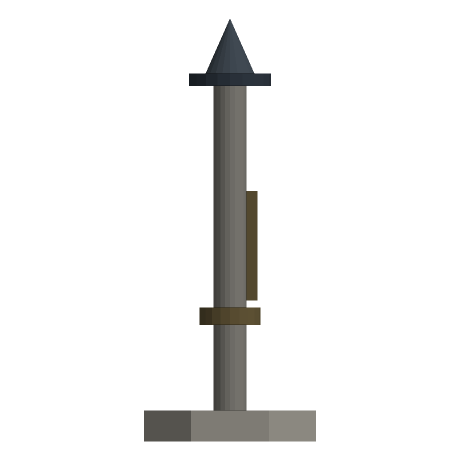

Lantern Reach — The Sounding Post, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

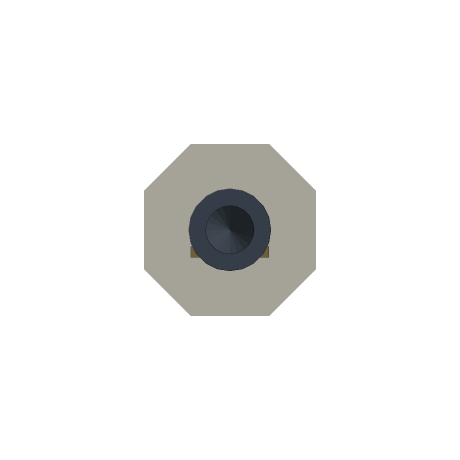

Lantern Reach — The Sounding Post, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

Nothing found. Parts meet, nothing floats, nothing is buried and anything that has to be walked through is tall enough.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid	Tag
`foot`	Prism	`#b9b5aa`	flat	`0, 0, 0`	`1 × 0.4 × 1`	yes	base
`shaft`	Cylinder	`#9a978f`	flat	`0, 2.6, 0`	`0.42 × 4.4 × 0.42`	yes	shaft
`band`	Cylinder	`#7a6a44`	flat	`0, 1.6, 0`	`0.78 × 0.22 × 0.78`	no	band
`plate`	Cube	`#7a6a44`	flat	`0, 2.5, -0.28`	`1 × 1.4 × 0.14`	no	plate
`ring`	Cylinder	`#3a4450`	flat	`0, 4.62, 0`	`1.05 × 0.16 × 1.05`	no	ring
`cap`	Cone	`#46505a`	flat	`0, 5.05, 0`	`0.62 × 0.7 × 0.62`	no	cap
