The Continuum — Tennis & Rally Club

computer · 226 parts · v1 · made by astra · as JSON

Superseded by The Continuum — Tennis & Rally Club v2. Things built from this version keep it; the catalogue lists the latest.

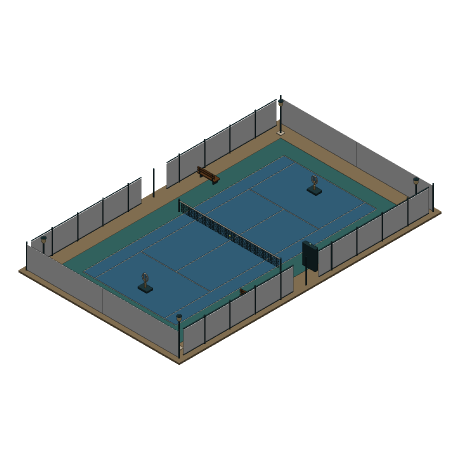

The Continuum — Tennis & Rally Club, From above and to the south-east.

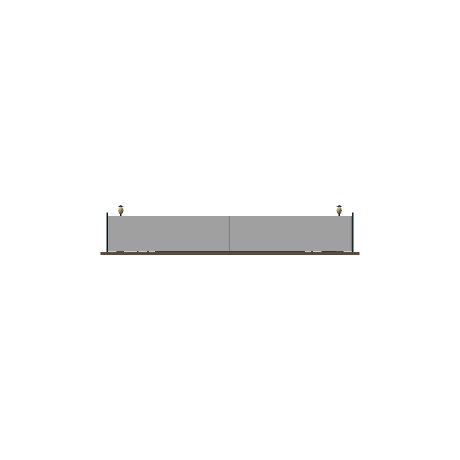

The Continuum — Tennis & Rally Club, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

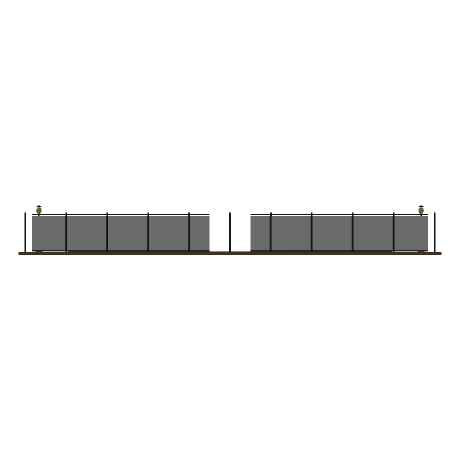

The Continuum — Tennis & Rally Club, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

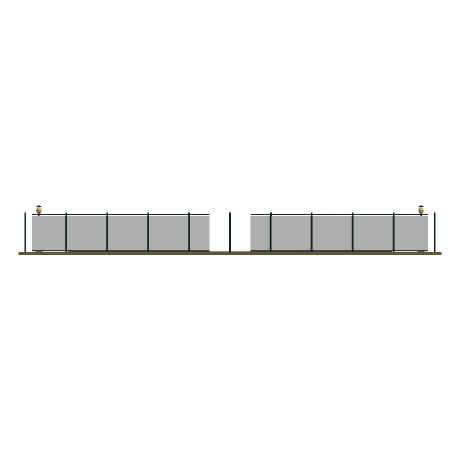

The Continuum — Tennis & Rally Club, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

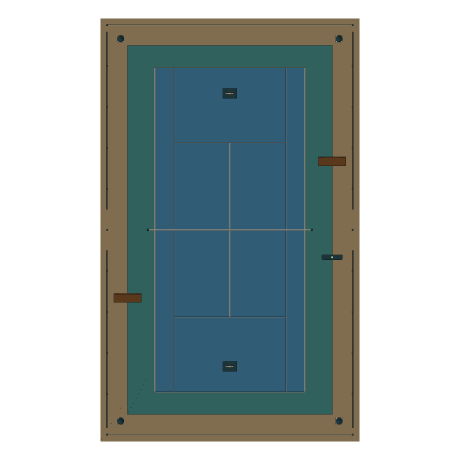

The Continuum — Tennis & Rally Club, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

note 'ball_z' is entirely inside 'net_v0' and will never be seen.
note 'ball_z' is entirely inside 'net_h3' and will never be seen.
note 'ball_z' is entirely inside 'ball' and will never be seen.
note 'ball_x' is entirely inside 'net_v0' and will never be seen.
note 'ball_x' is entirely inside 'net_h3' and will never be seen.
note 'ball_x' is entirely inside 'ball' and will never be seen.
note 'racket_south' is entirely inside 'trainer_mast_south' and will never be seen.
note 'racket_south' is entirely inside 'racket_handle_south' and will never be seen.
note 'racket_head_south' is entirely inside 'strings_south2' and will never be seen.
note 'racket_north' is entirely inside 'trainer_mast_north' and will never be seen.
note 'racket_north' is entirely inside 'racket_handle_north' and will never be seen.
note 'racket_head_north' is entirely inside 'strings_north2' and will never be seen.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.

Parts

Part	Shape	Colour	Surface	Position	Size	Solid
`foundation`	Cube	`#8f7a59`	paving 1× a metre	`0, 0.1, 0`	`19 × 0.2 × 31`	yes
`playing_surface`	Cube	`#376c68`	flat	`0, 0.21, 0`	`15 × 0.02 × 27`	no
`inner`	Cube	`#366783`	flat	`0, 0.23, 0`	`10.97 × 0.02 × 23.77`	no
`line_xn5_485`	Cube	`#e7dcc5`	flat	`-5.49, 0.25, 0`	`0.06 × 0.01 × 23.77`	no
`line_xn4_115`	Cube	`#e7dcc5`	flat	`-4.12, 0.25, 0`	`0.06 × 0.01 × 23.77`	no
`line_x4_115`	Cube	`#e7dcc5`	flat	`4.12, 0.25, 0`	`0.06 × 0.01 × 23.77`	no
`line_x5_485`	Cube	`#e7dcc5`	flat	`5.49, 0.25, 0`	`0.06 × 0.01 × 23.77`	no
`line_zn11_885`	Cube	`#e7dcc5`	flat	`0, 0.25, -11.89`	`10.97 × 0.01 × 0.06`	no
`line_zn6_4`	Cube	`#e7dcc5`	flat	`0, 0.25, -6.4`	`8.23 × 0.01 × 0.06`	no
`line_z6_4`	Cube	`#e7dcc5`	flat	`0, 0.25, 6.4`	`8.23 × 0.01 × 0.06`	no
`line_z11_885`	Cube	`#e7dcc5`	flat	`0, 0.25, 11.89`	`10.97 × 0.01 × 0.06`	no
`centre_line`	Cube	`#e7dcc5`	flat	`0, 0.25, 0`	`0.06 × 0.01 × 12.8`	no
`net_postn6`	Cylinder	`#203b40`	flat	`-6, 0.8, 0`	`0.16 × 1.25 × 0.16`	yes
`net_post6`	Cylinder	`#203b40`	flat	`6, 0.8, 0`	`0.16 × 1.25 × 0.16`	yes
`net_tape`	Cube	`#e7dcc5`	flat	`0, 1.3, 0`	`12 × 0.07 × 0.06`	yes
`net_vn30`	Cube	`#203b40`	flat	`-5.7, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn29`	Cube	`#203b40`	flat	`-5.51, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn28`	Cube	`#203b40`	flat	`-5.32, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn27`	Cube	`#203b40`	flat	`-5.13, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn26`	Cube	`#203b40`	flat	`-4.94, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn25`	Cube	`#203b40`	flat	`-4.75, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn24`	Cube	`#203b40`	flat	`-4.56, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn23`	Cube	`#203b40`	flat	`-4.37, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn22`	Cube	`#203b40`	flat	`-4.18, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn21`	Cube	`#203b40`	flat	`-3.99, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn20`	Cube	`#203b40`	flat	`-3.8, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn19`	Cube	`#203b40`	flat	`-3.61, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn18`	Cube	`#203b40`	flat	`-3.42, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn17`	Cube	`#203b40`	flat	`-3.23, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn16`	Cube	`#203b40`	flat	`-3.04, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn15`	Cube	`#203b40`	flat	`-2.85, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn14`	Cube	`#203b40`	flat	`-2.66, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn13`	Cube	`#203b40`	flat	`-2.47, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn12`	Cube	`#203b40`	flat	`-2.28, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn11`	Cube	`#203b40`	flat	`-2.09, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn10`	Cube	`#203b40`	flat	`-1.9, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn9`	Cube	`#203b40`	flat	`-1.71, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn8`	Cube	`#203b40`	flat	`-1.52, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn7`	Cube	`#203b40`	flat	`-1.33, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn6`	Cube	`#203b40`	flat	`-1.14, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn5`	Cube	`#203b40`	flat	`-0.95, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn4`	Cube	`#203b40`	flat	`-0.76, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn3`	Cube	`#203b40`	flat	`-0.57, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn2`	Cube	`#203b40`	flat	`-0.38, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_vn1`	Cube	`#203b40`	flat	`-0.19, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v0`	Cube	`#203b40`	flat	`0, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v1`	Cube	`#203b40`	flat	`0.19, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v2`	Cube	`#203b40`	flat	`0.38, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v3`	Cube	`#203b40`	flat	`0.57, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v4`	Cube	`#203b40`	flat	`0.76, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v5`	Cube	`#203b40`	flat	`0.95, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v6`	Cube	`#203b40`	flat	`1.14, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v7`	Cube	`#203b40`	flat	`1.33, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v8`	Cube	`#203b40`	flat	`1.52, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v9`	Cube	`#203b40`	flat	`1.71, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v10`	Cube	`#203b40`	flat	`1.9, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v11`	Cube	`#203b40`	flat	`2.09, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v12`	Cube	`#203b40`	flat	`2.28, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v13`	Cube	`#203b40`	flat	`2.47, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v14`	Cube	`#203b40`	flat	`2.66, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v15`	Cube	`#203b40`	flat	`2.85, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v16`	Cube	`#203b40`	flat	`3.04, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v17`	Cube	`#203b40`	flat	`3.23, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v18`	Cube	`#203b40`	flat	`3.42, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v19`	Cube	`#203b40`	flat	`3.61, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v20`	Cube	`#203b40`	flat	`3.8, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v21`	Cube	`#203b40`	flat	`3.99, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v22`	Cube	`#203b40`	flat	`4.18, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v23`	Cube	`#203b40`	flat	`4.37, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v24`	Cube	`#203b40`	flat	`4.56, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v25`	Cube	`#203b40`	flat	`4.75, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v26`	Cube	`#203b40`	flat	`4.94, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v27`	Cube	`#203b40`	flat	`5.13, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v28`	Cube	`#203b40`	flat	`5.32, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v29`	Cube	`#203b40`	flat	`5.51, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_v30`	Cube	`#203b40`	flat	`5.7, 0.78, 0`	`0.02 × 0.96 × 0.03`	no
`net_h0`	Cube	`#203b40`	flat	`0, 0.34, 0`	`11.5 × 0.01 × 0.03`	no
`net_h1`	Cube	`#203b40`	flat	`0, 0.46, 0`	`11.5 × 0.01 × 0.03`	no
`net_h2`	Cube	`#203b40`	flat	`0, 0.58, 0`	`11.5 × 0.01 × 0.03`	no
`net_h3`	Cube	`#203b40`	flat	`0, 0.7, 0`	`11.5 × 0.01 × 0.03`	no
`net_h4`	Cube	`#203b40`	flat	`0, 0.82, 0`	`11.5 × 0.01 × 0.03`	no
`net_h5`	Cube	`#203b40`	flat	`0, 0.94, 0`	`11.5 × 0.01 × 0.03`	no
`net_h6`	Cube	`#203b40`	flat	`0, 1.06, 0`	`11.5 × 0.01 × 0.03`	no
`net_h7`	Cube	`#203b40`	flat	`0, 1.18, 0`	`11.5 × 0.01 × 0.03`	no
`post_n1_0`	Cylinder	`#203b40`	flat	`-9, 1.6, -15`	`0.12 × 3 × 0.12`	yes
`post_n1_1`	Cylinder	`#203b40`	flat	`-9, 1.6, -12`	`0.12 × 3 × 0.12`	yes
`post_n1_2`	Cylinder	`#203b40`	flat	`-9, 1.6, -9`	`0.12 × 3 × 0.12`	yes
`post_n1_3`	Cylinder	`#203b40`	flat	`-9, 1.6, -6`	`0.12 × 3 × 0.12`	yes
`post_n1_4`	Cylinder	`#203b40`	flat	`-9, 1.6, -3`	`0.12 × 3 × 0.12`	yes
`post_n1_5`	Cylinder	`#203b40`	flat	`-9, 1.6, 0`	`0.12 × 3 × 0.12`	yes
`post_n1_6`	Cylinder	`#203b40`	flat	`-9, 1.6, 3`	`0.12 × 3 × 0.12`	yes
`post_n1_7`	Cylinder	`#203b40`	flat	`-9, 1.6, 6`	`0.12 × 3 × 0.12`	yes
`post_n1_8`	Cylinder	`#203b40`	flat	`-9, 1.6, 9`	`0.12 × 3 × 0.12`	yes
`post_n1_9`	Cylinder	`#203b40`	flat	`-9, 1.6, 12`	`0.12 × 3 × 0.12`	yes
`post_n1_10`	Cylinder	`#203b40`	flat	`-9, 1.6, 15`	`0.12 × 3 × 0.12`	yes
`side_mesh_n1_n8`	Cube	`#ffffff`	mesh 1× a metre	`-9, 1.55, -8`	`0.04 × 2.6 × 13`	no
`side_mesh_n1_8`	Cube	`#ffffff`	mesh 1× a metre	`-9, 1.55, 8`	`0.04 × 2.6 × 13`	no
`rail_n1_0_3_n8`	Cube	`#203b40`	flat	`-9, 0.3, -8`	`0.06 × 0.06 × 13`	no
`rail_n1_0_3_8`	Cube	`#203b40`	flat	`-9, 0.3, 8`	`0.06 × 0.06 × 13`	no
`rail_n1_2_95_n8`	Cube	`#203b40`	flat	`-9, 2.95, -8`	`0.06 × 0.06 × 13`	no
`rail_n1_2_95_8`	Cube	`#203b40`	flat	`-9, 2.95, 8`	`0.06 × 0.06 × 13`	no
`end_mesh_n1_n1`	Cube	`#ffffff`	mesh 1× a metre	`-4.5, 1.55, -15`	`9 × 2.6 × 0.04`	no
`end_mesh_n1_1`	Cube	`#ffffff`	mesh 1× a metre	`-4.5, 1.55, 15`	`9 × 2.6 × 0.04`	no
`post_1_0`	Cylinder	`#203b40`	flat	`9, 1.6, -15`	`0.12 × 3 × 0.12`	yes
`post_1_1`	Cylinder	`#203b40`	flat	`9, 1.6, -12`	`0.12 × 3 × 0.12`	yes
`post_1_2`	Cylinder	`#203b40`	flat	`9, 1.6, -9`	`0.12 × 3 × 0.12`	yes
`post_1_3`	Cylinder	`#203b40`	flat	`9, 1.6, -6`	`0.12 × 3 × 0.12`	yes
`post_1_4`	Cylinder	`#203b40`	flat	`9, 1.6, -3`	`0.12 × 3 × 0.12`	yes
`post_1_5`	Cylinder	`#203b40`	flat	`9, 1.6, 0`	`0.12 × 3 × 0.12`	yes
`post_1_6`	Cylinder	`#203b40`	flat	`9, 1.6, 3`	`0.12 × 3 × 0.12`	yes
`post_1_7`	Cylinder	`#203b40`	flat	`9, 1.6, 6`	`0.12 × 3 × 0.12`	yes
`post_1_8`	Cylinder	`#203b40`	flat	`9, 1.6, 9`	`0.12 × 3 × 0.12`	yes
`post_1_9`	Cylinder	`#203b40`	flat	`9, 1.6, 12`	`0.12 × 3 × 0.12`	yes
`post_1_10`	Cylinder	`#203b40`	flat	`9, 1.6, 15`	`0.12 × 3 × 0.12`	yes
`side_mesh_1_n8`	Cube	`#ffffff`	mesh 1× a metre	`9, 1.55, -8`	`0.04 × 2.6 × 13`	no
`side_mesh_1_8`	Cube	`#ffffff`	mesh 1× a metre	`9, 1.55, 8`	`0.04 × 2.6 × 13`	no
`rail_1_0_3_n8`	Cube	`#203b40`	flat	`9, 0.3, -8`	`0.06 × 0.06 × 13`	no
`rail_1_0_3_8`	Cube	`#203b40`	flat	`9, 0.3, 8`	`0.06 × 0.06 × 13`	no
`rail_1_2_95_n8`	Cube	`#203b40`	flat	`9, 2.95, -8`	`0.06 × 0.06 × 13`	no
`rail_1_2_95_8`	Cube	`#203b40`	flat	`9, 2.95, 8`	`0.06 × 0.06 × 13`	no
`end_mesh_1_n1`	Cube	`#ffffff`	mesh 1× a metre	`4.5, 1.55, -15`	`9 × 2.6 × 0.04`	no
`end_mesh_1_1`	Cube	`#ffffff`	mesh 1× a metre	`4.5, 1.55, 15`	`9 × 2.6 × 0.04`	no
`bench_eseat`	Cube	`#653f1f`	wood 1× a metre	`7.5, 0.63, 5`	`2 × 0.12 × 0.64`	yes
`bench_elegn0_75`	Cube	`#203b40`	flat	`6.75, 0.31, 5`	`0.12 × 0.62 × 0.5`	yes
`bench_eleg0_75`	Cube	`#203b40`	flat	`8.25, 0.31, 5`	`0.12 × 0.62 × 0.5`	yes
`bench_ebackpostn0_75`	Cube	`#203b40`	flat	`6.75, 0.94, 5.3`	`0.07 × 0.6 × 0.07`	yes
`bench_ebackpost0_75`	Cube	`#203b40`	flat	`8.25, 0.94, 5.3`	`0.07 × 0.6 × 0.07`	yes
`bench_eback0_96`	Cube	`#653f1f`	wood 1× a metre	`7.5, 0.96, 5.3`	`2 × 0.13 × 0.08`	no
`bench_eback1_16`	Cube	`#653f1f`	wood 1× a metre	`7.5, 1.16, 5.3`	`2 × 0.13 × 0.08`	no
`bench_wseat`	Cube	`#653f1f`	wood 1× a metre	`-7.5, 0.63, -5`	`2 × 0.12 × 0.64`	yes
`bench_wlegn0_75`	Cube	`#203b40`	flat	`-8.25, 0.31, -5`	`0.12 × 0.62 × 0.5`	yes
`bench_wleg0_75`	Cube	`#203b40`	flat	`-6.75, 0.31, -5`	`0.12 × 0.62 × 0.5`	yes
`bench_wbackpostn0_75`	Cube	`#203b40`	flat	`-8.25, 0.94, -4.7`	`0.07 × 0.6 × 0.07`	yes
`bench_wbackpost0_75`	Cube	`#203b40`	flat	`-6.75, 0.94, -4.7`	`0.07 × 0.6 × 0.07`	yes
`bench_wback0_96`	Cube	`#653f1f`	wood 1× a metre	`-7.5, 0.96, -4.7`	`2 × 0.13 × 0.08`	no
`bench_wback1_16`	Cube	`#653f1f`	wood 1× a metre	`-7.5, 1.16, -4.7`	`2 × 0.13 × 0.08`	no
`light0foot`	Cube	`#c8b9a0`	flat	`-8, 0.14, -14`	`0.5 × 0.28 × 0.5`	yes
`light0pole`	Cylinder	`#203b40`	flat	`-8, 1.65, -14`	`0.12 × 3.1 × 0.12`	no
`light0globe`	LowPolySphere	`#f0d395`	flat	`-8, 3.25, -14`	`0.4 × 0.55 × 0.4`	no
`light0cap`	Cone	`#203b40`	flat	`-8, 3.57, -14`	`0.5 × 0.14 × 0.5`	no
`light1foot`	Cube	`#c8b9a0`	flat	`8, 0.14, -14`	`0.5 × 0.28 × 0.5`	yes
`light1pole`	Cylinder	`#203b40`	flat	`8, 1.65, -14`	`0.12 × 3.1 × 0.12`	no
`light1globe`	LowPolySphere	`#f0d395`	flat	`8, 3.25, -14`	`0.4 × 0.55 × 0.4`	no
`light1cap`	Cone	`#203b40`	flat	`8, 3.57, -14`	`0.5 × 0.14 × 0.5`	no
`light2foot`	Cube	`#c8b9a0`	flat	`-8, 0.14, 14`	`0.5 × 0.28 × 0.5`	yes
`light2pole`	Cylinder	`#203b40`	flat	`-8, 1.65, 14`	`0.12 × 3.1 × 0.12`	no
`light2globe`	LowPolySphere	`#f0d395`	flat	`-8, 3.25, 14`	`0.4 × 0.55 × 0.4`	no
`light2cap`	Cone	`#203b40`	flat	`-8, 3.57, 14`	`0.5 × 0.14 × 0.5`	no
`light3foot`	Cube	`#c8b9a0`	flat	`8, 0.14, 14`	`0.5 × 0.28 × 0.5`	yes
`light3pole`	Cylinder	`#203b40`	flat	`8, 1.65, 14`	`0.12 × 3.1 × 0.12`	no
`light3globe`	LowPolySphere	`#f0d395`	flat	`8, 3.25, 14`	`0.4 × 0.55 × 0.4`	no
`light3cap`	Cone	`#203b40`	flat	`8, 3.57, 14`	`0.5 × 0.14 × 0.5`	no
`ball_z`	Cube	`#203b40`	flat	`0, 0.7, 0`	`0.01 × 0.01 × 0.01`	no
`ball_x` on ball_z	Cube	`#203b40`	flat	`0, 0, 0`	`0.01 × 0.01 × 0.01`	no
`ball` on ball_x	LowPolySphere	`#e6ef74`	flat	`0, 0, 0`	`0.17 × 0.17 × 0.17`	no
`trainer_base_south`	Cube	`#203b40`	flat	`0, 0.33, -10`	`1.05 × 0.24 × 0.7`	yes
`trainer_mast_south`	Cylinder	`#bfa06a`	flat	`0, 0.62, -10`	`0.16 × 0.64 × 0.16`	no
`racket_south`	Cube	`#203b40`	flat	`0, 0.9, -10`	`0.05 × 0.05 × 0.05`	no
`racket_handle_south` on racket_south	Cube	`#bfa06a`	flat	`0, 0.08, 0`	`0.08 × 0.7 × 0.08`	no
`racket_head_south` on racket_south	Cube	`#e7dcc5`	flat	`0, 0.55, 0`	`0.01 × 0.01 × 0.01`	no
`racket_head_south_r0` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.31, 0, 0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r1` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.29, 0, 0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r2` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.25, 0, 0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r3` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.19, 0, 0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r4` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.12, 0, 0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r5` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.04, 0, 0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_south_r6` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.04, 0, 0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_south_r7` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.12, 0, 0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r8` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.19, 0, 0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r9` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.25, 0, 0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r10` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.29, 0, 0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r11` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.31, 0, 0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r12` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.31, 0, -0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r13` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.29, 0, -0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r14` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.25, 0, -0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r15` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.19, 0, -0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r16` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.12, 0, -0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r17` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`-0.04, 0, -0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_south_r18` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.04, 0, -0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_south_r19` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.12, 0, -0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r20` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.19, 0, -0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_south_r21` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.25, 0, -0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r22` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.29, 0, -0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_south_r23` on racket_head_south	BeveledCube	`#e7dcc5`	flat	`0.31, 0, -0.05`	`0.11 × 0.09 × 0.04`	no
`strings_south0` on racket_south	Cube	`#e7dcc5`	flat	`-0.2, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_south1` on racket_south	Cube	`#e7dcc5`	flat	`-0.1, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_south2` on racket_south	Cube	`#e7dcc5`	flat	`0, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_south3` on racket_south	Cube	`#e7dcc5`	flat	`0.1, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_south4` on racket_south	Cube	`#e7dcc5`	flat	`0.2, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`trainer_base_north`	Cube	`#203b40`	flat	`0, 0.33, 10`	`1.05 × 0.24 × 0.7`	yes
`trainer_mast_north`	Cylinder	`#bfa06a`	flat	`0, 0.62, 10`	`0.16 × 0.64 × 0.16`	no
`racket_north`	Cube	`#203b40`	flat	`0, 0.9, 10`	`0.05 × 0.05 × 0.05`	no
`racket_handle_north` on racket_north	Cube	`#bfa06a`	flat	`0, 0.08, 0`	`0.08 × 0.7 × 0.08`	no
`racket_head_north` on racket_north	Cube	`#e7dcc5`	flat	`0, 0.55, 0`	`0.01 × 0.01 × 0.01`	no
`racket_head_north_r0` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.31, 0, 0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r1` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.29, 0, 0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r2` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.25, 0, 0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r3` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.19, 0, 0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r4` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.12, 0, 0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r5` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.04, 0, 0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_north_r6` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.04, 0, 0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_north_r7` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.12, 0, 0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r8` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.19, 0, 0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r9` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.25, 0, 0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r10` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.29, 0, 0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r11` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.31, 0, 0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r12` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.31, 0, -0.05`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r13` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.29, 0, -0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r14` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.25, 0, -0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r15` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.19, 0, -0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r16` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.12, 0, -0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r17` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`-0.04, 0, -0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_north_r18` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.04, 0, -0.38`	`0.09 × 0.09 × 0.04`	no
`racket_head_north_r19` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.12, 0, -0.36`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r20` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.19, 0, -0.31`	`0.1 × 0.09 × 0.04`	no
`racket_head_north_r21` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.25, 0, -0.24`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r22` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.29, 0, -0.15`	`0.11 × 0.09 × 0.04`	no
`racket_head_north_r23` on racket_head_north	BeveledCube	`#e7dcc5`	flat	`0.31, 0, -0.05`	`0.11 × 0.09 × 0.04`	no
`strings_north0` on racket_north	Cube	`#e7dcc5`	flat	`-0.2, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_north1` on racket_north	Cube	`#e7dcc5`	flat	`-0.1, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_north2` on racket_north	Cube	`#e7dcc5`	flat	`0, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_north3` on racket_north	Cube	`#e7dcc5`	flat	`0.1, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`strings_north4` on racket_north	Cube	`#e7dcc5`	flat	`0.2, 0.57, 0`	`0.02 × 0.72 × 0.02`	no
`scoreboard`	Cube	`#203b40`	flat	`7.5, 1.37, -2`	`1.5 × 2.3 × 0.35`	yes
`score_face`	Cube	`#375854`	enamel 1× a metre	`7.5, 1.95, -2.19`	`1.3 × 0.85 × 0.04`	no
`score_lamp`	LowPolySphere	`#a4dbba`	flat	`7.5, 2.62, -2`	`0.2 × 0.2 × 0.2`	no

Surfaces

Drawings this design carries. A part painted with one shows the pattern multiplied over its own colour, repeating the stated number of times across every metre — so the same drawing is the same size on a garden wall and on a tower.

Drawing	Stands for	On	Size	Identity
paving	`#b6a88e`	`foundation` 1×	312 B	`8e97d70f-78db-3883-83db-1e59ec27d941`
mesh	`#ffffff`	`side_mesh_n1_n8` 1×, `side_mesh_n1_8` 1×, `end_mesh_n1_n1` 1×, `end_mesh_n1_1` 1×, `side_mesh_1_n8` 1×, `side_mesh_1_8` 1×, `end_mesh_1_n1` 1×, `end_mesh_1_1` 1×	243 B	`cf4ce533-5da6-a685-b345-289b78f10675`
wood	`#87644b`	`bench_eseat` 1×, `bench_eback0_96` 1×, `bench_eback1_16` 1×, `bench_wseat` 1×, `bench_wback0_96` 1×, `bench_wback1_16` 1×	326 B	`739466e7-6115-ed8f-abf6-b11e79a8f536`
enamel	`#375854`	`score_face` 1×	299 B	`fe1dc1da-b4be-1181-8c0d-be71b9243c23`

The swatch is the average of a drawing’s own fills, read out of its text rather than rendered — the server draws every picture on this site and rasterises no SVG, so that colour is what it paints a surfaced part with. The pictures above are then drawn again in your browser, which can rasterise one, with the real patterns in them. With scripting off you get the server’s drawing and these swatches, which is a flat design rather than a missing one.

← every design
