Aurora Tower Sky Terrace

building · 36 parts · v1 · made by player:01a09b3c-b65b-7634-b743-75e6abfd9d08 · as JSON

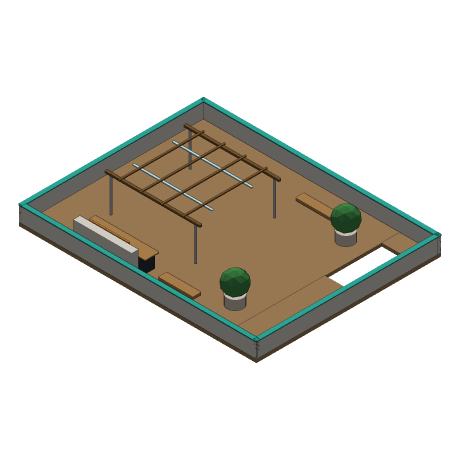

Aurora Tower Sky Terrace, Looking north. East is to the right. — **Front**
Looking north. East is to the right.

Aurora Tower Sky Terrace, Looking west. North is to the right. — **Right**
Looking west. North is to the right.

Aurora Tower Sky Terrace, Looking east. South is to the right. — **Left**
Looking east. South is to the right.

Aurora Tower Sky Terrace, Looking down. North is up the page. — **Top**
Looking down. North is up the page.

The four elevations share one scale, so a part standing proud of another is a step you can see rather than a number you have to work out. Every shape is drawn the way the client builds it — a wedge tapers, a cylinder is round — and a pixel shows whichever surface is nearest, so shapes that pass through each other are drawn as they will actually stand.

Review

fault 'perg_light_a' touches nothing else in the design: the nearest part of the main body, 'slat_a', is 0.03 m away.
fault 'perg_light_b' touches nothing else in the design: the nearest part of the main body, 'slat_a', is 0.03 m away.

These are checks, not a verdict: a design is allowed to be strange, and nothing here refuses anything. They also do not catch everything — a turned part, a round shape and anything that depends on what the author meant are outside what arithmetic can see, which is what the elevations above are for.
